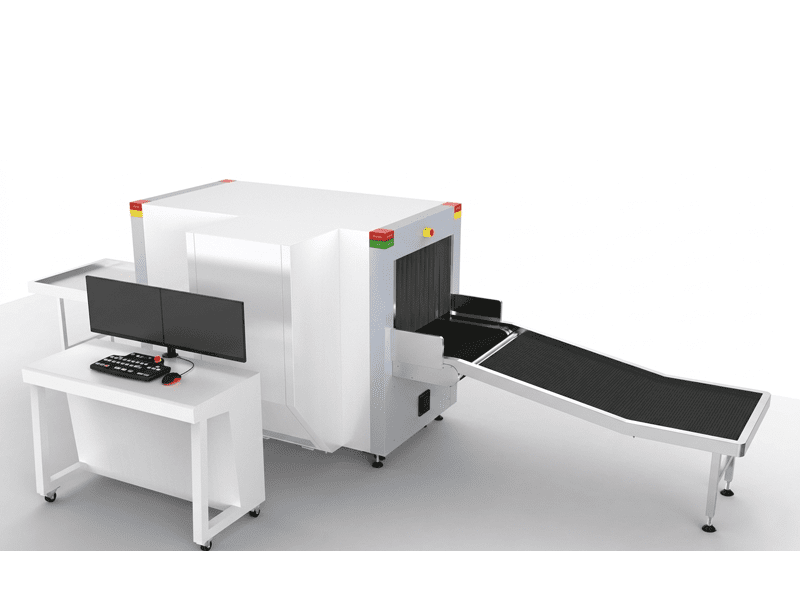

High-Security & Transit X-Ray Baggage Scanners
Model: GSBS-6545 D | GSBS-6550 D
Product Overview
The Go Scan High-Security and Transit Scanner Series delivers airport-grade X-ray baggage screening designed for environments that demand maximum detection accuracy, high passenger throughput and continuous operational reliability.
Engineered for airports, subway and metro stations, bus terminals, government buildings, and high-traffic public venues, the series integrates advanced imaging technologies such as triple-view scanning, dual-view imaging and dual-energy material classification to enhance threat detection and improve screening efficiency.
With tunnel sizes ranging from 65×45 cm to 100×100 cm, these systems deliver high-resolution X-ray imaging, intelligent threat detection and high-throughput conveyor performance — ensuring reliable screening even during peak passenger traffic.
Model Configurations
Triple-View · 3 Generators
GSBS-6545 D
Triple-View Triple-Generator Scanner — 65×45 cm
- Three independent X-ray generators
- Simultaneous horizontal, vertical & lateral scanning
- Near-3D triple-view imaging
- Detection rate above 99% for concealed threats
- High-security transit hubs & government buildings
Dual-View · 2 Generators
GSBS-6550 D
Dual-View Dual-Generator Scanner — 65×50 cm
- Two independent X-ray generators
- Dual-view X-ray imaging
- Dual-energy material classification
- Larger tunnel for oversized luggage
- Airports & government ministry entrances
UPS Backup · Threat Alert
GSBS-1080 D
Medium-Large Transit & Airport Scanner — 100×80 cm
- Single-view dual-energy X-ray scanning
- Automatic threat alert system
- Built-in UPS backup power
- Airports, subway & bus terminals
Dual-View · Large Cargo
GSBS-1010 D
Airport-Grade Dual-View Scanner — 100×100 cm
- Dual-view imaging with two generators
- Designed for large baggage & cargo inspection
- Airport cargo, logistics hubs & large hotels
AERB certification is subject to approval in India and will be obtained by the authorized channel partner at the time of sale.
Key Features & Benefits
Triple-View Imaging Technology (GSBS-6545 D)
The GSBS-6545 D uses three independent X-ray generators scanning from horizontal, vertical and lateral angles simultaneously — creating a near-3D imaging capability that eliminates blind spots common in conventional scanners.
Detection accuracy exceeds 99% for concealed threats, including:
- Upright blades
- Overlapping electronics
- Liquid contraband
Operators can identify threats without re-scanning or repositioning baggage.
Dual-View Imaging Technology (GSBS-6550 D & GSBS-1010 D)
The GSBS-6550 D and GSBS-1010 D utilise two independent X-ray generators capturing images from both top and side perspectives. Dual-view imaging reduces blind spots and significantly improves detection reliability compared with single-view scanners. The GSBS-6550 D’s larger 65×50 cm tunnel also allows screening of larger luggage while maintaining high image clarity.
Dual-Energy Material Classification
All models employ dual-energy X-ray technology to classify materials automatically. Items are displayed in different colours based on material composition, allowing operators to quickly distinguish:
- Organic materials
- Inorganic materials
- Metals
This feature helps identify suspicious items inside densely packed bags.
Integrated Threat Alert System (GSBS-1080 D)
The GSBS-1080 D includes an automatic threat alert system that detects objects matching predefined threat profiles. This reduces operator fatigue and ensures consistent screening performance during high-volume passenger operations.
UPS Backup Power (GSBS-1080 D)
The integrated Uninterruptible Power Supply (UPS) in the GSBS-1080 D allows the scanner to continue operating during power fluctuations or outages — essential for 24/7 security environments such as airports and metro systems.
High-Throughput Conveyor Performance
Wide tunnel openings of up to 100×100 cm allow screening of:
- Large suitcases
- Oversized bags
- Bulky luggage and cargo
High conveyor speed ensures efficient passenger screening even during peak traffic periods.
Radiation Safety
Around 0.1–1 microsievert (μSv) per scan — negligible compared to a chest X-ray (100 μSv) or natural background radiation (2,400 μSv/year). The X-ray beam is fully enclosed within a lead-lined tunnel; operators and bystanders receive no measurable radiation dose during normal operation.
Built-In Safety Interlocks
Automatic interlocks cut the X-ray beam if curtains are displaced, a fault is detected, or any safety condition is unmet. High-voltage components are fully enclosed; access panels are tool-locked and interlock-protected. Only certified technicians may service internal components.
Certifications & Compliance
All models carry CE, FCC and FDA certifications. In India, AERB approval is mandatory under the Atomic Energy Act, 1962 — covering type approval, import licence, site installation, and periodic renewal. End-users must also hold an AERB operating licence.
Technical Specifications
| Specification | GSBS-6545 D | GSBS-6550 D | GSBS-1080 D | GSBS-1010 D |
|---|---|---|---|---|
| Tunnel Size | 65×45 cm | 65×50 cm | 100×80 cm | 100×100 cm |
| X-Ray Views | Triple-View | Dual-View | Single-View | Dual-View |
| Generators | 3 | 2 | 1 | 2 |
| Imaging Type | Triple-View Near-3D | Dual-Energy | Dual-Energy | Dual-Energy |
| Threat Alert | — | — | Yes | — |
| UPS Backup | — | — | Yes | — |
| Certifications | CE, FCC, FDA | CE, FCC, FDA | CE, FCC, FDA | CE, FCC, FDA |
| Best For | High-Security Transit & Govt | Airports & Govt Buildings | Airports & Transit Hubs | Airport Cargo & Large Luggage |
| Warranty | 12 Months | 12 Months | 12 Months | 12 Months |
Ideal Applications
Airports & Aviation Security
GSBS-6550 D · GSBS-1010 D · GSBS-1080 D
High-resolution dual-view scanning for airport security checkpoints. The GSBS-1080 D is widely deployed in regional airports for its UPS backup and automatic threat alert capabilities.
Subway & Metro Stations
GSBS-6545 D · GSBS-1080 D
Rapid screening at busy urban metro entry points where large passenger volumes require fast and reliable baggage inspection without bottlenecks.
Bus & Coach Terminals
GSBS-1080 D
Ideal for intercity bus terminals where large travel luggage must be screened quickly. Wide 100×80 cm tunnel accommodates bulky items without delay.
Government Buildings & Ministries
GSBS-6550 D · GSBS-6545 D
High-confidence detection for government offices, parliament buildings, and judiciary facilities. Where the highest detection level is required, the GSBS-6545 D's triple-view imaging provides an additional security layer.
High-Traffic Commercial Venues
GSBS-6545 D
Large shopping malls, stadiums, exhibition centres and factories deploy the GSBS-6545 D for reliable baggage screening in high-footfall environments where detection accuracy cannot be compromised.
Logistics Centres & Large Hotels
GSBS-1080 D
Supports security checkpoints in logistics facilities and large hotel complexes, where diverse baggage items require efficient, continuous screening across multiple shifts.
Why Choose Global Hi-Tech?
Security System Expertise
High-security screening systems designed for demanding transit and government environments — backed by deep domain expertise in X-ray baggage inspection technology.
Advanced Imaging Technology
Triple-view and dual-view X-ray scanning with intelligent threat detection and dual-energy material classification for the highest possible detection confidence.
Professional Deployment
Complete installation, commissioning, and operator training services carried out by experienced engineers to ensure smooth, reliable system performance from day one.
Long-Term Technical Support
Reliable after-sales support including preventive maintenance, technical assistance, and responsive service to ensure uninterrupted security operations.
Warranty
12-Month standard warranty included as standard, with optional extended coverage available upon request.
Frequently Asked Questions
What is the difference between GSBS-6545 D and GSBS-6550 D?
The GSBS-6545 D uses three X-ray generators for triple-view near-3D scanning, offering the highest detection capability with accuracy above 99% for concealed threats. The GSBS-6550 D uses dual-view imaging with two generators and provides a slightly taller 65×50 cm tunnel for larger luggage — optimised for airport and government screening environments.
Why does the GSBS-6550 D have a taller tunnel?
The 65×50 cm tunnel allows screening of larger bags commonly found at airport and government security checkpoints, while maintaining high image resolution and dual-energy material classification accuracy.
How does triple-view imaging improve threat detection?
Triple-view scanners capture three simultaneous image perspectives — horizontal, vertical, and lateral — significantly reducing blind spots caused by overlapping objects inside bags. This near-3D capability allows operators to identify threats without re-scanning or repositioning baggage.
Can these scanners be installed outdoors?
These scanners are designed for indoor installation at covered security checkpoints. For outdoor or all-weather configurations, specialised system configurations may be required — contact our team for site-specific guidance.
Is X-ray baggage scanning safe for passengers and bystanders?
Yes. The X-ray beam is fully enclosed within a lead-lined tunnel, and operators or bystanders receive no measurable radiation dose during normal operation. Each scan emits around 0.1–1 microsievert (μSv) — negligible compared to a chest X-ray (100 μSv) or natural background radiation (2,400 μSv/year).
What certifications and approvals are required?
Scanners must comply with IEC 62463, ANSI N43.17, and national regulations (FDA/EURATOM). In India, AERB approval is mandatory under the Atomic Energy Act, 1962 — covering type approval, import licence, site installation, and periodic renewal. End-users must also hold an AERB operating licence.
What are the recommended operating conditions?
0–40°C and up to 95% non-condensing humidity. Exceeding these limits can affect image quality and may trigger an automatic safe shutdown to protect the system and operator.
