Application

Single – energy detection system, not support material discrimination. Highwire detectability and spatial resolution make a high quality X-ray imaging. Different Access Levels, can open unlimited sub-account with hierarchical permissions Embedded with Wireless LAN, Network Enable, support software upgrade by remote control Bi-directional operations allows the system to be incorporated and realize the two-way screening Leaded Cabinet with double lead curtain at both tunnels to avoid x-ray leakage to ensure people safety

X-ray Inspection System Applications

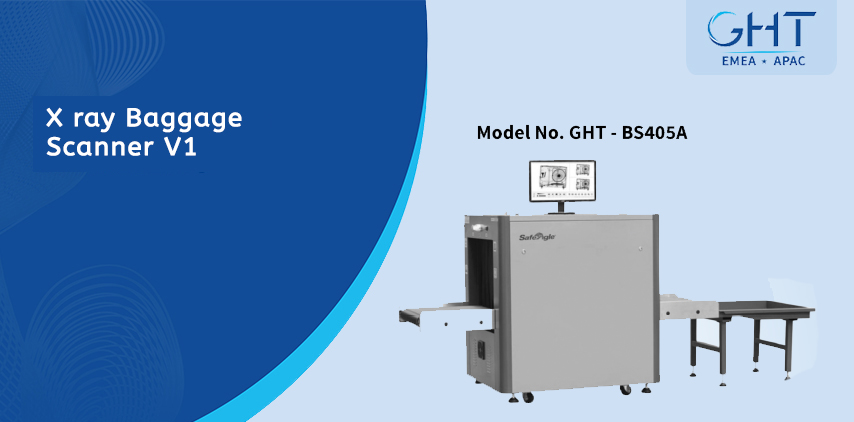

Go-Safe GHT-BS405A is designed to detect prohibited items and threats by screening packages at security checkpoints.The65*50cm tunnel opening can different side of hand cases, backpacks. Ideal for using at public area, such as hotel, shopping m al ls, factories, office building, bank, court, church, etc. It is equipped with a 80k V generator typically, high resolution pseudo colour x-ray imaging with 21 colours processing tools. The advanced imaging capability of our BS405Araisesthe standard forsmall sized Xray. Screening system and deliver san array of features that give operators the information they need to clear suspicious items quickly and more effectively.Ifrequired basic features and the budgets an issue, BS405A is your best choice. If need higher performance, please contact your sales partner for moredetails.

Smart Software System

Independent intellectual property rights software supports reliable platform for future upgrades and system management, backed by ateamofrich experts,support customized function modules according to clients requirement, including password protection, different iate slevels (Administrator and Operator), customized density & sizealert, imaging fast query,USB backup,remark and display ratio,freely switch the multiple languages.

Radiational Dose Control

Leaded Steel Cabinet tostopx-rayleakage Double layer leaded curtainat exit and entry Radiation dose measur in gb efore leaving factory. 5cm away from LXDA Side, Generator side and Top, 10cm away from exit and entry, 5 cm away from LXDA Side, Generator side top, 10 cm away from entry and exit

General Specification

Tunnel Size 655 x 500 mm
Conveyor Load 100 Kg
Conveyor Speed 0.22 m/s
Penetration 10 mm steel
Resolution 32 AVG

X Ray Generator and Image Performance

Anode Voltage – 80kVA
Ray Beam Direction – Vertically Upward
Cooling – Oil Cooling 100%
Beam Direction – 60 Degrees
X Ray Convertor – L Shaped Photodiode Array
Detector – Single – energy
Grey Level – 6535
Image Penetration – B/W and colour
Monitor – 21.5” LCD, Windows OS

Installation Data

Accessories – Exit with 0.7m extension table
Operation / Storage Temperature –0°C ~ 45° C / -20°C – ~ +60° C
Humidity – 20% ~98% non- condensing
Power Consumption – 0.8 kW (Max)
Power Supply – 100 – 240 V AC +10% – 15 % selectable 50/60 Hz ~ 3Hz
Sound Supply – < 58dB
N.W G.W – 354 Kg / 426 Kg or 780 lbs / 939 lbs
Dimensions (LWH) – 2205 x 971 x 1290 mm

Compliance

US FDA: Title [21, CFR, Part 1020.40]
CE Compliance
Directive 2014 /30/EU Electromagnetic Compatibility
The Machinery Directive 2006/ 42 /EU
LVD Directive 2014 /35/ EU
RoHS: EN62321:2008
FCC Compliance
Film Safety: Up to ISO 1600 (33DIN)
Radiation Safety Certificate
ISO9001 Quality Management System
