Air Purification Equipment
Air shower for cleanrooms
Product Overview
Global Hi-Technologies’ Go-Clean Air Purification Equipment range provides essential entry systems for cleanrooms, designed to minimise contamination from personnel and materials. Installed between clean and non-clean areas, these systems use high-velocity clean air to remove dust before entry. Electronically interlocked doors act as an airlock, preventing outside polluted air from entering the clean environment. Each system is engineered for controlled entry, combining G4 pre-filter and H13 HEPA filter with 2-stage filtration, 360-degree adjustable stainless steel nozzles, fully automatic infrared induction blowing, and LCD time display with adjustable shower time (0–99 seconds). The air velocity of the nozzle reaches 22–27 m/s with low noise centrifugal fan operation.
Products in This Range
Personnel Air Showers
ASD / DSD / L-Shape Configurations
- Available in single-person, double-person, and multiple-person configurations
- Blowing options: single-side, top-down, double-side, or triple-side
- Materials: powder coated steel, polish SS 201/304/316, mirror SS 201/304/316
- Door types: manual, automatic 90-degree, sliding, high-speed roll-up, PVC curtains, or open-entry
- Power supply: 220V/380V, 50 Hz/60 Hz, single-phase/three-phase
- Electronically interlocked doors prevent simultaneous opening

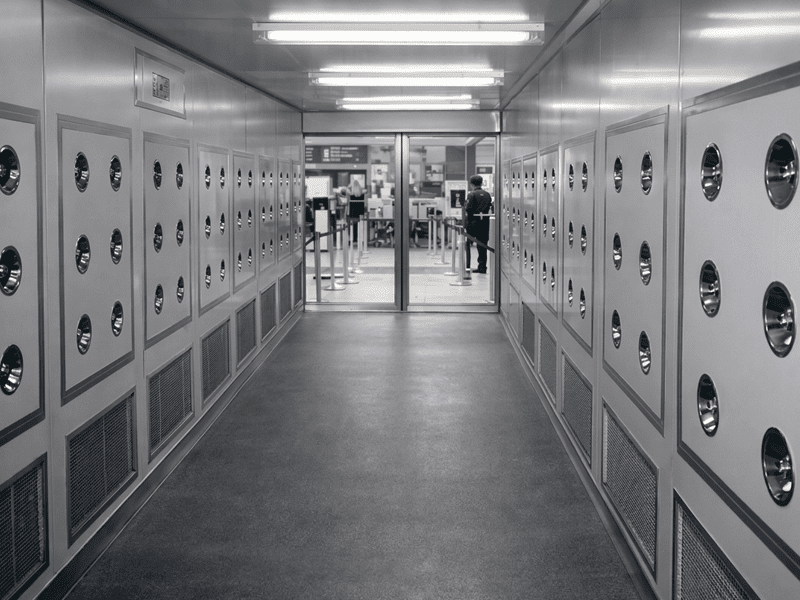

Air Shower Tunnel
High-Capacity Personnel Decontamination Tunnel
- Designed for high-traffic facilities requiring continuous personnel flow
- Accommodates 4–5 persons simultaneously
- Outside dimensions: 1290 × 3000 × 2130 mm
- 36 nozzles delivering 22–27 m/s air velocity
- 99.95% filtration efficiency at 0.3 μm particle size
- Fan power: 1100W × 3 units at 380V/50Hz
Cargo Air Showers
ARUD / DSD / PVC-RSD Door Configurations
- Automatic Rolling Up Door (ARUD) — high-speed vertical rolling for rapid throughput
- Double Swing Door (DSD) — wide-opening for oversized cargo and pallets
- PVC Fast Rolling Shutter Door (PVC-RSD) — fast-acting for continuous flow operations
- Suitable for trolleys, pallets, and logistics carts
- Same H13 HEPA filtration and 2-stage air purification as personnel showers
Common platform across all models: All Go-Clean air showers share the same core filtration architecture — G4 pre-filter + H13 HEPA filter with 2-stage filtration, achieving 99.95% efficiency at 0.3 μm. Systems are customisable per customer requirements including dimensions, materials, door types, blowing configurations, and power supply.
Product Parameters at a Glance
| Parameter | GC-SPAS-1 | GC-SPAS-2 | GC-SPAS-3 | GC-AST-4 |
|---|---|---|---|---|
| Type | Single Person Double Blow | Two Person Double Blow | Three Person Double Blow | Air Shower Tunnel |
| Outside Dimensions (mm) | 1290×1000×2130 | 1290×1500×2130 | 1290×2000×2130 | 1290×3000×2130 |
| Internal Size (mm) | 790×880×1925 | 790×1380×1925 | 790×1880×1925 | 790×2880×1925 |
| Suitable Persons | 1–2 | 2–3 | 3–4 | 4–5 |
| Nozzle Count | 12 Pcs | 18 Pcs | 24 Pcs | 36 Pcs |
| Air Velocity | 22–27 m/s | 22–27 m/s | 22–27 m/s | 22–27 m/s |
| Noise Level | <65 dB(A) | <65 dB(A) | <65 dB(A) | <65 dB(A) |
| Filter Efficiency | 99.95% @ 0.3 μm | 99.95% @ 0.3 μm | 99.95% @ 0.3 μm | 99.95% @ 0.3 μm |
| Fan Power | 1100W ×1 | 750W ×2 | 1100W ×2 | 1100W ×3 |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Key Features & Benefits
2-Stage HEPA Filtration
All Go-Clean air showers employ a dual-stage filtration system: a G4 pre-filter captures large particulates before a H13 HEPA filter removes particles down to 0.3 μm with 99.95% efficiency. This two-stage approach protects HEPA filter life while ensuring that only particle-free air reaches personnel or cargo during the decontamination cycle.
High-Velocity 360° Adjustable Nozzles
Stainless steel nozzles are adjustable through 360 degrees, enabling full-body coverage regardless of personnel orientation. Air velocity from each nozzle reaches 22–27 m/s, sufficient to dislodge surface contamination from clothing and exposed skin. Low-noise centrifugal fan technology keeps operation below 65 dB(A), minimising noise impact in adjacent cleanroom areas.
Automatic Infrared Induction & Interlocked Doors
Fully automatic infrared induction triggers the blowing cycle on personnel entry, eliminating the need for manual activation. Electronically interlocked doors prevent entry and exit doors from opening simultaneously, maintaining the air pressure differential that keeps contaminated outside air from entering the clean environment. The LCD panel displays the shower countdown and allows timer adjustment from 0 to 99 seconds.
Customisable to Facility Requirements
Global Hi-Technologies customises all air shower configurations to match facility layout, traffic volume, cleanliness class requirements, and operational workflow. Door types, blowing direction, chamber dimensions, material finish, and power supply specifications are all configurable. Personnel and cargo variants are available with a full selection of door systems including automatic rolling, swing, sliding, and PVC fast-shutter options.
H13 HEPA Filtration — 99.95% Efficiency
The G4 pre-filter and H13 HEPA filter combination provides a two-barrier filtration approach that achieves 99.95% removal efficiency at 0.3 μm particle size — the most penetrating particle size for HEPA filters. The pre-filter extends HEPA filter service life by capturing coarse particulates before they reach the primary filter media, reducing maintenance frequency and operating cost in high-traffic cleanroom entries.
Airlock Architecture — Contamination Prevention
Electronically interlocked doors form an airlock between the clean and non-clean zones. The interlock prevents both entry and exit doors from opening simultaneously, maintaining the pressure differential that stops outside polluted air from entering the cleanroom. This is a fundamental requirement for cleanroom entry systems operating at ISO Class 5 through Class 8 and equivalent standards.
Professional Deployment & Ongoing Support
GHT provides end-to-end project delivery — from site survey and system configuration through to installation, commissioning, and operator training. Post-deployment, clients receive comprehensive aftersales technical support including on-site maintenance and service assistance. All models carry a 12-month standard warranty, with extended warranty packages available for long-term facility requirements.
How it works
1
Personnel or Cargo Approaches the Air Shower
Personnel or a goods trolley enters the air shower chamber through the entry door. The infrared induction sensor detects presence automatically, triggering the decontamination cycle without any manual intervention required.
2
Interlocked Doors Secure the Chamber
The electronically interlocked door system prevents both entry and exit doors from opening simultaneously. This airlock prevents outside polluted air from entering the cleanroom and maintains the pressure boundary between the clean and non-clean zones throughout the decontamination cycle.
3
High-Velocity Clean Air Jet Initiated
The centrifugal fan draws ambient air through the G4 pre-filter and H13 HEPA filter, producing a clean, high-velocity airstream. The 360-degree adjustable stainless steel nozzles direct this stream at 22–27 m/s across all surfaces of the personnel or cargo to dislodge dust, particulates, and contaminants.
4
Shower Timer Counts Down on LCD Display
The LCD panel displays the remaining shower time throughout the cycle. Shower duration is adjustable from 0 to 99 seconds via the control panel, enabling facilities to calibrate decontamination time to their cleanliness class requirements and traffic throughput needs.
5
Dislodged Particles Removed by Exhaust
Contaminated air carrying dislodged particles is exhausted from the chamber before it can settle on personnel or cargo. The continuous clean-air injection and exhaust cycle ensures that removed contamination does not re-deposit during the shower duration.
6
Cleanroom Entry Authorised
On cycle completion, the exit door releases and personnel or cargo may proceed into the cleanroom. The entry door remains interlocked until the exit door has closed, maintaining the airlock integrity for the next user cycle.
Cleanroom compatibility: Go-Clean air showers are designed for integration between ISO Class 5–8 cleanrooms and adjacent non-clean areas. Configuration, shower time, and door type selections are guided by the facility’s cleanliness class requirements and traffic volume specifications.
Compatible with Facility Management Systems
Go-Clean air showers are compatible with building management systems, access control platforms, and facility monitoring software. Integration with existing infrastructure allows centralised control, entry event logging, and real-time status monitoring across multiple air shower units within a single facility or campus.
Warranty
All Go-Clean air shower models include a 12-month standard warranty covering manufacturing defects across all components — chamber, filtration system, fan units, nozzles, interlocked door mechanisms, and control panel. Extended warranty packages are available on request for facilities requiring longer coverage periods.
Technical Specifications
Personnel Air Shower (Standard Models)
| Parameter | Specification |
|---|---|
| Filtration System | 2-stage: G4 pre-filter + H13 HEPA filter |
| Filter Efficiency | 99.95% at 0.3 μm particle size |
| Air Velocity (Nozzle) | 22–27 m/s |
| Nozzle Type | 360-degree adjustable stainless steel |
| Nozzle Count | 12 Pcs (single-person) to 36 Pcs (tunnel) |
| Noise Level | <65 dB(A) |
| Shower Timer | LCD display, adjustable 0–99 seconds |
| Activation | Fully automatic infrared induction |
| Door Interlock | Electronic interlock — prevents simultaneous opening |
| Fan Power | 1100W ×1 (single-person) to 1100W ×3 (tunnel) |
| Power Supply | 380V / 50Hz (standard); 220V options available |
| Chamber Material | Powder coated steel; SS 201/304/316 (mirror or polish finish) |
| Warranty | 12 months standard; extended packages available |
Cargo Air Shower (Material Decontamination)
| Parameter | Specification |
|---|---|
| Filtration System | 2-stage: G4 pre-filter + H13 HEPA filter |
| Filter Efficiency | 99.95% at 0.3 μm particle size |
| Air Velocity (Nozzle) | 22–27 m/s |
| Door Types Available | Automatic Rolling Up Door (ARUD), Double Swing Door (DSD), PVC Fast Rolling Shutter Door (PVC-RSD) |
| Suitable Cargo | Trolleys, pallets, logistics carts, materials |
| Noise Level | <65 dB(A) |
| Power Supply | 380V / 50Hz (standard); customisable |
| Dimensions | Customisable to facility and cargo specifications |
| Warranty | 12 months standard; extended packages available |
Customisation note: All Go-Clean air showers are customisable as per customer requirements — including chamber dimensions, material finish, door type, blowing direction (single-side, top-down, double-side, triple-side), number of blowing sides, and power supply specifications. Contact GHT with facility layout and cleanliness class requirements for a tailored configuration.
Ideal Applications
Semiconductor & Electronics Manufacturing
Personnel Air Shower
Cargo Air Shower
Semiconductor fabs and electronics assembly cleanrooms require stringent contamination control at every personnel and material entry point. Go-Clean air showers provide the H13 HEPA filtration and interlocked airlock architecture required for ISO Class 5–7 environments where even sub-micron particulates on entering personnel or components can cause yield loss.
Pharmaceutical & Biotech Production
Personnel Air Shower — Recommended
GMP-compliant pharmaceutical manufacturing requires controlled entry to cleanrooms at all product-contact and filling zones. Personnel air showers provide a validated contamination removal step at entry, reducing particulate burden on personnel prior to gowning or direct cleanroom access in areas compliant with EU GMP Annex 1 and equivalent standards.
Food & Beverage Processing Plants
Personnel Air Shower
Cargo Air Shower
Controlled air entry is increasingly specified in food processing facilities operating under HACCP and food safety management systems. Go-Clean air showers minimise particulate and biological contamination risk at entry points to packaging, filling, and high-care production zones.
Hospital & Medical Device Manufacturing
Personnel Air Shower — Recommended
Surgical instrument manufacturing, implant production, and sterile medical device assembly require cleanroom entry systems that meet ISO 13485 and related quality management standards. Air showers provide a consistent contamination reduction step at cleanroom entry, protecting product integrity across critical production zones.
Aerospace & Precision Engineering
Personnel Air Shower
Cargo Air Shower
Aerospace component manufacturing and precision optical assembly require cleanroom conditions where microscopic contamination can compromise part tolerances and optical performance. Go-Clean air showers serve as a critical first barrier against personnel and material-borne contamination in these environments.
Research Laboratories & Testing Facilities
Personnel Air Shower
Research and testing labs requiring controlled particulate environments benefit from standard personnel air shower configurations at cleanroom entry. Adjustable shower time and configurable door types allow facilities to tailor the system to their specific cleanliness class and traffic volume requirements.
Why Choose Global Hi-Technologies
System Design & Integration
Tailored configurations based on facility layout, traffic volume, cleanliness class requirements, and operational workflow. Every Go-Clean system is specified to match the customer's cleanroom entry architecture precisely.
Advanced Technology Support
Compatible with building management systems, access control platforms, and facility monitoring software. Integration support enables centralised management of multiple air shower units from a single platform.
Reliable Deployment
Professional installation and commissioning by trained engineers with on-site support. GHT delivers end-to-end project execution from initial site survey through to operator training and handover.
Long-Term Aftersales Support
Comprehensive aftersales service and technical assistance included as standard. Extended warranty packages available on request for facilities requiring longer-term coverage beyond the standard 12-month warranty period.
12-Month Standard Warranty
All Go-Clean models carry a 12-month standard warranty covering manufacturing defects across all components including fan units, filtration system, nozzles, interlocked door mechanisms, and control panel.
Frequently Asked Questions
What door types are available for personnel air showers?
Personnel air showers support manual doors, automatic 90-degree doors, sliding doors, high-speed roll-up doors, PVC curtains, and open-entry configurations. The choice depends on traffic volume, personnel flow direction, and the cleanroom class requirements of the facility. Global Hi-Technologies recommends the appropriate door type based on a site consultation.
Can air showers be customised to facility requirements?
Yes. Global Hi-Technologies customises air showers as per customer requirements, including chamber dimensions, material finish, door types, blowing configurations (single-side, top-down, double-side, triple-side), and power supply specifications. Customisation is available across both personnel and cargo air shower variants.
What filtration standard do the air showers use?
All Go-Clean models use G4 pre-filter and H13 HEPA filter with 2-stage filtration, achieving 99.95% efficiency at 0.3 μm particle size. The G4 pre-filter captures larger particles first, extending HEPA filter life and reducing maintenance frequency. This filtration standard is appropriate for ISO Class 5 through Class 8 cleanroom entry applications.
How loud are the air showers during operation?
All models operate at less than 65 dB(A), using low-noise centrifugal fan technology. This level is comparable to normal office conversation, minimising noise impact in adjacent cleanroom corridors and work areas during the decontamination cycle.
What is the shower duration and can it be adjusted?
The shower duration is adjustable from 0 to 99 seconds via the LCD control panel. Facilities calibrate shower time to their cleanliness class requirements and personnel traffic throughput needs. Typical settings range from 15 to 30 seconds for standard pharmaceutical and electronics cleanroom applications.
How does the door interlock work?
The electronically interlocked door system prevents the entry and exit doors from opening simultaneously. When a person enters through the entry door, it locks until the shower cycle completes and the person exits through the exit door. The entry door then unlocks for the next person. This airlock principle maintains the pressure boundary between the clean and non-clean zones, preventing contaminated outside air from bypassing the decontamination chamber.
What is the difference between personnel and cargo air showers?
Personnel air showers are configured for people entering the cleanroom — with chamber dimensions, nozzle height, and door configurations suited for single or small groups of personnel. Cargo air showers are designed for the decontamination of materials, goods, trolleys, and pallets entering the cleanroom, featuring large-format door systems such as automatic rolling up doors, double swing doors, and PVC fast-shutter doors to accommodate bulk material flow. Both variants use the same H13 HEPA filtration standard.
What warranty is provided?
All Go-Clean models include a 12-month standard warranty covering manufacturing defects across all components — including the filtration system, fan units, nozzles, interlocked door mechanisms, and control panel. Extended warranty packages are available on request for facilities requiring longer coverage periods.
Request a Consultation
Contact Global Hi-Technologies for professional consultation, system configuration, and competitive pricing on Go-Clean Air Purification Equipment for your facility.
