Aviation Borescopes
Models: GV-K , GV-JX, GV-F, GV-T51X-6000
Product Overview

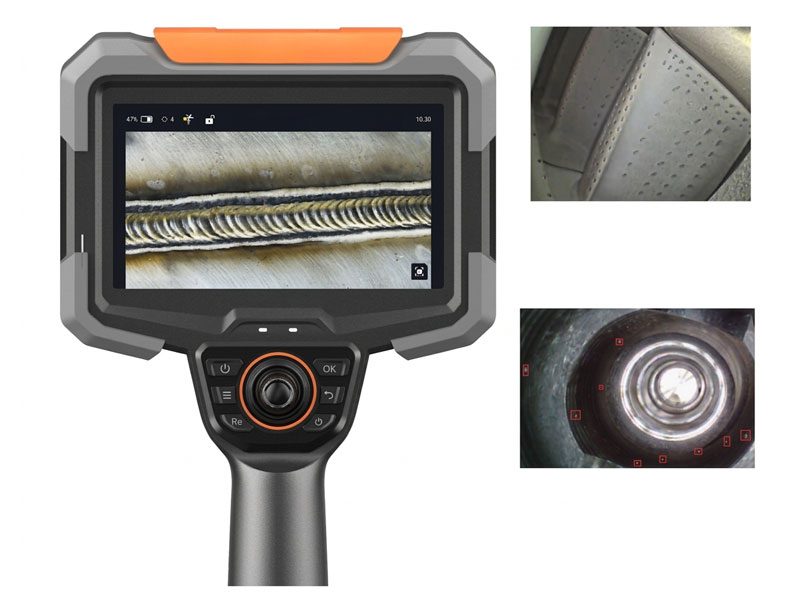

Global Hi-Technologies’ Aviation Borescope range provides MRO organisations, airline maintenance departments, and aviation inspection contractors with professional-grade on-wing engine inspection capability. The product range spans from the portable GV-T51X-6000 for routine inspection tasks to the advanced GV-JX 3D cloud-scanning system designed for high-precision defect measurement and airworthiness documentation. These borescopes enable technicians to perform comprehensive aero-engine inspections without engine removal, improving inspection efficiency while maintaining strict aviation maintenance standards.
Products in This Range

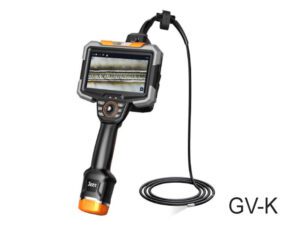

GV-K
Motor-Driven 2MP Ultra-HD Aviation Borescope
- 2MP Ultra-HD resolution (1920 × 1080)
- 210° bending capability with motor-driven articulation
- 30m signal transmission range
- Modular probe diameter Φ1.0 – 8.0mm
- Fast and slow articulation modes with lighted joystick
GV-JX
3D Cloud Scanning & Measurement Aviation Borescope
- Full 3D cloud image modelling with XYZ coordinate display
- MDI inspection report generation
- LED / optic fibre lighting up to 1,000,000 Lx
- Inspection reach up to 10 metres
- Bluetooth and USB data output with 10+ patented technologies

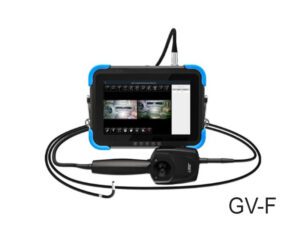

GV-F
Portable 3D Aviation Videoscope
- 1MP HD imaging with 360° articulation
- Point-to-point, point-to-line, and polyline measurement
- Measurement accuracy >95%
- Probe diameter Φ1.0 – 8.0mm, working length 2–3m (customisable)
- Bluetooth inspection report output

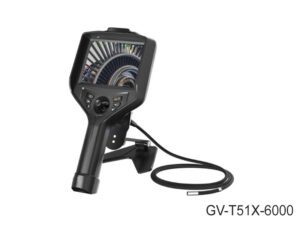

GV-T51X-6000
Portable Joystick Aviation Borescope
- HD imaging 1280 × 720 with 190° bending capability
- Interchangeable probe diameters Φ2.2 – 6mm
- High-temperature alarm at 65°C / 80°C
- 5.1" HD display with ≥8 hours battery operation
- HDMI output for external display
Key Performance Features
Ultra-HD Imaging & Deep Probe Articulation
The GV-K delivers 2MP Ultra-HD 1920×1080 resolution with motor-driven 210° bending and ≥15 0° articulation maintained at 10m depth. All models support modular probe diameters from Φ1.0 to 8.0mm, ensuring optimal probe selection for every engine access port encountered in MRO operations.
3D Cloud Modelling & Precision Measurement
The GV-JX features full 3D cloud image modelling with XYZ coordinate measurement display, arbitrary section analysis, and MDI inspection report generation. The GV-F offers point-to-point, point-to-line, and polyline measurement with accuracy exceeding 95% — both systems providing documented, defensible airworthiness data for regulatory compliance.
Extended Reach & Signal Transmission
The GV-K supports 30m signal transmission with working lengths up to 5m, while the GV-JX extends inspection reach to 10 metres — enabling access to deep turbine stages and long-barrel engine sections without removing the engine from the wing. This dramatically reduces maintenance turnaround time and associated costs.
Safety & Thermal Protection
The GV-T51X-6000 incorporates dual high-temperature alarms at 65°C and 80°C, protecting the probe from thermal damage during hot-section inspections. Combined with ≥8 hours of battery operation and HDMI output for team viewing, it provides a complete portable solution for scheduled line maintenance checks.
Inspection Reach
Working lengths from 1m to 10m across the range, with 30m signal transmission on the GV-K — enabling access to deep turbine stages in large commercial aero-engines without engine removal from the wing.
Measurement Accuracy
The GV-JX and GV-F both achieve measurement accuracy exceeding 95%, with XYZ coordinate measurement, 3D cloud modelling, arbitrary section analysis, and point-to-point / polyline measurement for comprehensive defect characterisation.
Reporting & Connectivity
The GV-JX supports USB, Bluetooth, and internal storage for MDI report output. The GV-F provides Bluetooth inspection report output. The GV-T51X-6000 includes HDMI output, enabling real-time viewing on external displays during maintenance operations.
Technical Specifications
| Specification | GV-K | GV-JX | GV-F | GV-T51X-6000 |
|---|---|---|---|---|
| Probe Diameter | Φ1.0 – 8.0mm | Φ1.0 – 8.0mm | Φ1.0 – 8.0mm | Φ2.2 – 6mm |
| Working Length | 1 – 5m | 1 – 10m | 2 – 3m (custom) | Standard |
| Camera Resolution | 1920×1080 (2MP) | High-Res HD | 1,000,000 px | 1280×720 |
| Articulation | 360° Motor-Driven | 360° Motor-Driven | 360° Joystick | 4-Way 360° Joystick |
| Max Bending Angle | 210° | Standard | Standard | ≥190° |
| Bending at 10m | ≥150° | — | — | ≥100° |
| 3D Measurement | — | 3D Cloud / XYZ / Section | Point / Line / Polyline | — |
| Measurement Accuracy | — | >95% | >95% | — |
| Signal Transmission | 30m | Standard | Standard | Long-distance |
| Light Source | LED | LED / Optic Fibre | HD Sensor LED | LED |
| Max Illuminance | Standard | 1,000,000 Lx | Standard | Standard |
| Report Output | — | USB / Bluetooth / Internal | Bluetooth | HDMI |
| Temperature Alarm | — | — | — | 65°C / 80°C |
| Certifications | RoHS, CE, ISO | ISO9001, CE, RoHS | RoHS, CE, ISO | RoHS, CE, ISO |
| Warranty | 12 months | 12 months | 12 months | 12 months |
Applications & Use Cases
Turbine Blade & Vane Inspection
GV-K
GV-JX — Recommended
Detailed inspection of HPT and LPT turbine blades, vanes, and tip clearances for erosion, cracks, and FOD assessment without engine removal from the wing.
Combustion Chamber & Hot-Section Inspection
GV-K
GV-JX — Recommended
High-intensity optic fibre illumination up to 1,000,000 Lx enables thorough combustion liner and hot-section inspection under demanding lighting conditions.
Compressor Blade & FOD Assessment
GV-F — Recommended
Accurate point-to-point and polyline measurement of compressor blade erosion and Foreign Object Damage at >95% accuracy for airworthiness determination and maintenance decision support.
Scheduled Line Maintenance Checks
GV-T51X-6000
GV-F
Portable models provide rapid on-wing inspection capability for routine scheduled checks, with ≥8 hours battery operation and temperature alarms ensuring safe field deployment.
Airworthiness Documentation & MRO Reporting
GV-JX — Recommended
MDI inspection report generation, 3D cloud modelling, and XYZ measurement data provide regulatorily compliant airworthiness documentation for submission to aviation authorities.
On-Wing Engine Inspection Contractors
GV-K — Recommended
30m signal transmission and motor-driven articulation make the GV-K the preferred tool for aviation inspection contractors performing deep engine surveys across multiple aircraft types.
Why Choose Global Hi-Technologies?
System Design & Integration
Tailored aviation inspection configurations matched to engine type, access port dimensions, and maintenance procedure requirements — ensuring the right borescope system is configured for each MRO application.
Advanced Technology
Industry-leading technologies including 3D cloud modelling, XYZ coordinate measurement, MDI reporting systems, motor-driven articulation, and high-intensity optic fibre illumination up to 1,000,000 Lx.
Reliable Deployment
Professional commissioning and operator training for aviation inspection teams, ensuring technicians achieve full operational capability and regulatory compliance from day one of deployment.
Long-Term Aftersales Support
Comprehensive aftersales service, technical assistance, and spare probe availability. All models include a 12-month standard warranty with extended options available — backed by Global Hi-Technologies' dedicated support team.
Proven Aviation Capability
Designed specifically for aero-engine inspection with certifications including RoHS, CE, and ISO standards. Each model is engineered to meet the demanding requirements of aviation maintenance organisations worldwide.
Frequently Asked Questions
What engine types are compatible with these borescopes?
The aviation borescope range is compatible with most commercial and military aero-engines. Probe diameters from Φ1.0 to 8.0mm cover the full range of engine borescope access ports. Global Hi-Technologies can configure specific probe and working-length combinations matched to your engine type upon consultation.
Can these borescopes perform inspection without removing the engine?

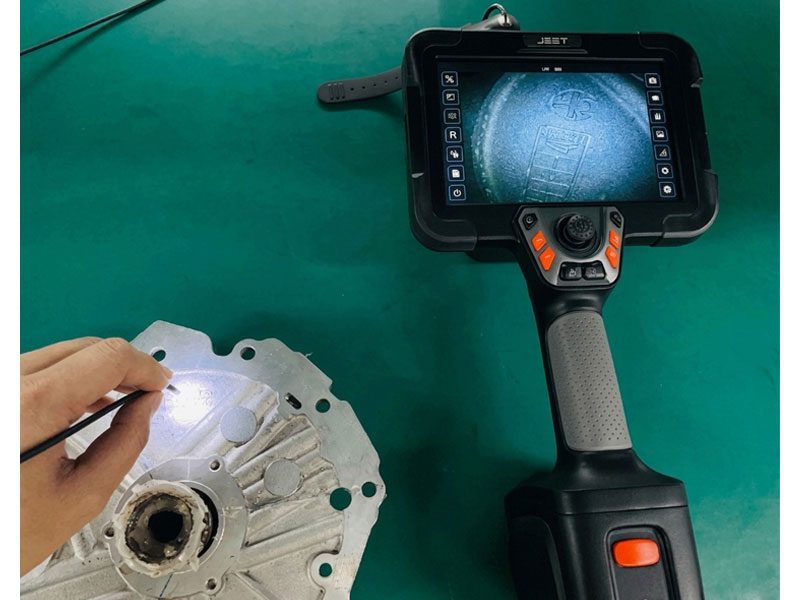

Yes. The entire range is designed for on-wing aero-engine inspection — enabling technicians to inspect turbine blades, combustion chambers, compressor stages, and hot sections through existing access ports without engine removal, significantly reducing maintenance time and cost.
Which model is best for precision defect measurement?
The GV-JX is the recommended choice for precision measurement, offering full 3D cloud image modelling, XYZ coordinate measurement, arbitrary section analysis, and MDI inspection report generation with 10+ patented technologies. The GV-F is also capable of point-to-point, point-to-line, and polyline measurement at >95% accuracy for field maintenance operations.
Are inspection reports generated for regulatory compliance?
Yes. The GV-JX generates MDI inspection reports exportable via USB, Bluetooth, and internal storage. The GV-F provides Bluetooth report output. These reports provide documented airworthiness assessment data suitable for submission to aviation regulatory authorities and inclusion in maintenance records.
What warranty and support is included?
All models include a 12-month standard warranty. Extended warranty options are available upon request. Global Hi-Technologies provides comprehensive aftersales service, technical assistance, operator training, and spare probe availability to ensure long-term operational reliability for aviation inspection teams.
