Products in This Range

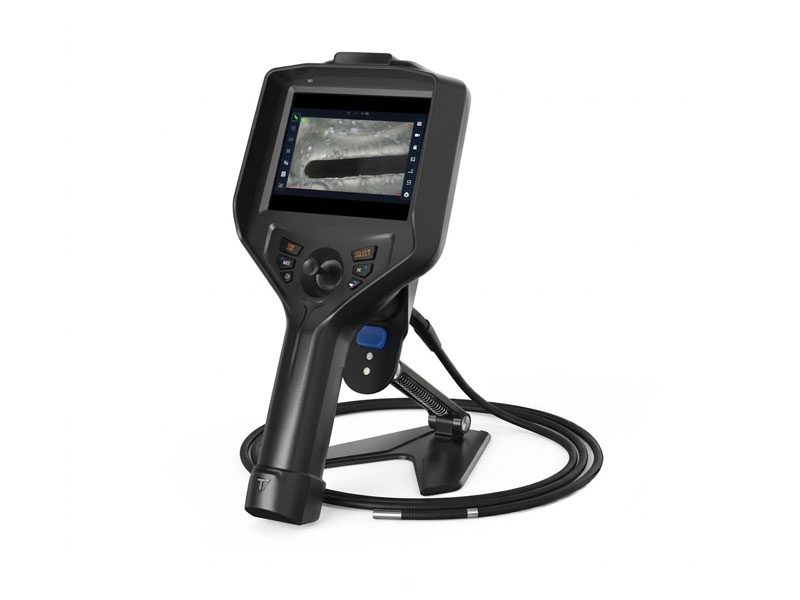

Measuring Endoscopes
Models: GV F | GV JX | GV TS
Product Overview
Global Hi-Technologies Measuring Endoscope range provides professional-grade 3D dimensional measurement capability within portable and handheld videoscope platforms.
From the compact handheld GV TS to the advanced motor-driven 3D cloud measurement GV JX, this product range enables accurate remote defect measurement and dimensional verification across multiple industrial sectors.
These systems allow inspection teams to measure defects and structural dimensions inside confined spaces without requiring equipment disassembly, improving inspection efficiency in industries such as aerospace, manufacturing, energy, and petrochemical operations.
Products in This Range

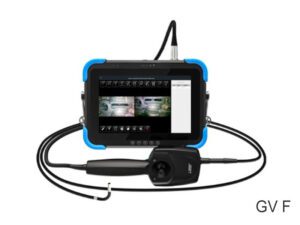

GV F
3D Measurement Industrial Videoscope
- Point-to-point, point-to-line, and polyline measurement
- Measurement accuracy greater than 95%
- 1MP HD imaging with probe diameter Φ1.0 – 8.0mm
- Working length 2 – 3 metres (customisable)
- Bluetooth report output to mobile devices
GV JX
Motor-Driven 3D Measurement Videoscope
- Full 3D cloud image modelling with XYZ coordinate measurement
- Arbitrary section analysis and real-time depth tracking
- LED and optic fibre illumination up to 1,000,000 Lx
- Inspection reach 1 – 10 metres, probe diameter Φ1.0 – 8.0mm
- MDI report generation via USB, Bluetooth, or internal storage

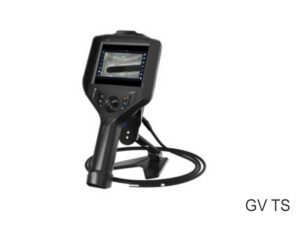

GV TS
Handheld Modular 3D Measurement Endoscope
- Compact handheld form factor with modular probe design
- Probe diameter Φ1.8 – 8.0mm with HD imaging
- 360° articulation with intuitive one-handed operation
- Cost-effective entry solution for precision measurement inspections
Key Performance Features

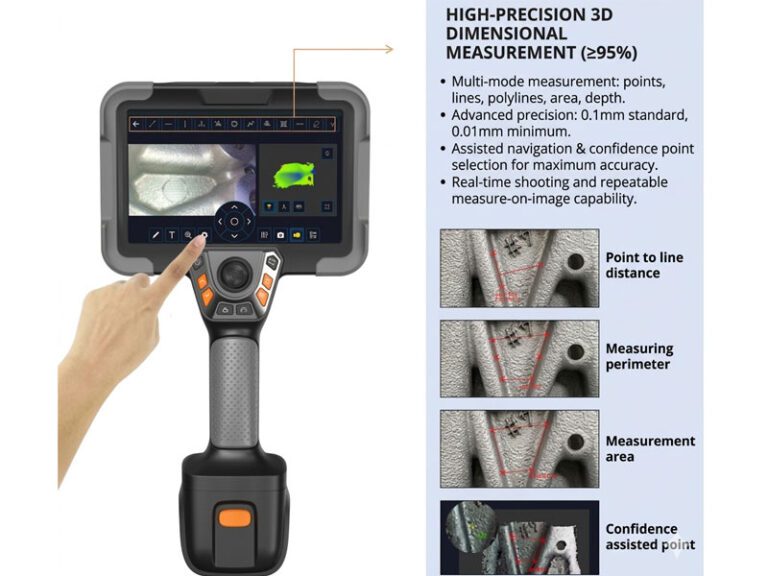

High-Precision 3D Dimensional Measurement
The GV F and GV JX both achieve measurement accuracy exceeding 95%, supporting point-to-point, point-to-line, and polyline measurement. The GV JX extends this further with full 3D cloud image modelling and XYZ coordinate measurement display — enabling precise defect characterisation and dimensional documentation for quality assurance and regulatory reporting.
Motor-Driven Articulation & Extended Reach
The GV JX features a motor-driven 360° articulation system with inspection reach up to 10 metres, enabling access to deep confined spaces in pipelines, pressure vessels, and large industrial equipment. The GV F and GV TS both provide 360° joystick articulation with modular probe diameters from Φ1.0 to 8.0mm across the range.
High-Intensity Illumination
The GV JX combines LED and optic fibre illumination delivering up to 1,000,000 Lx — ensuring clear, high-contrast imaging inside dark industrial cavities such as heat exchangers, turbine casings, and pressure vessels where standard LED illumination is insufficient for accurate defect measurement.
MDI Reporting & Wireless Connectivity
The GV JX generates MDI inspection reports exportable via USB, Bluetooth, or internal storage. The GV F supports Bluetooth report output directly to mobile devices, enabling immediate sharing of dimensional data and inspection findings with engineering teams without the need for a workstation on site.
Measurement Accuracy
The GV F and GV JX both achieve measurement accuracy exceeding 95% across point-to-point, point-to-line, polyline, and 3D cloud measurement modes — providing reliable dimensional data for critical industrial inspection and quality assurance decisions.
Inspection Depth & Reach
Working lengths span from 2–3m (customisable) on the GV F up to 10 metres on the GV JX, with probe diameters from Φ1.0mm — covering the full range of bore sizes and access depths encountered in industrial inspection applications from casting cavities to large pipeline systems.
Reporting & Data Output
The GV JX generates MDI inspection reports via USB, Bluetooth, and internal storage. The GV F outputs reports wirelessly via Bluetooth to mobile devices — enabling field teams to document and share dimensional findings immediately without returning to a workstation.
Technical Specifications
| Specification | GV F | GV JX | GV TS |
|---|---|---|---|
| Probe Diameter | Φ1.0 – 8.0mm | Φ1.0 – 8.0mm | Φ1.8 – 8.0mm |
| Working Length | 2 – 3m (Customisable) | 1 – 10m | Standard |
| Camera Resolution | 1,000,000 Pixels | HD | HD |
| Articulation | 360° Joystick | 360° Motor-Driven | 360° Joystick |
| 3D Measurement Types | Point-to-Point, Point-to-Line, Polyline | 3D Cloud / XYZ / Section | 3D Measurement Capable |
| Measurement Accuracy | >95% | >95% | Standard |
| Light Source | LED | LED / Optic Fibre | LED |
| Max Illuminance | Standard | 1,000,000 Lx | Standard |
| Report Output | Bluetooth (Mobile) | USB / Bluetooth / Internal | — |
| Form Factor | Portable | Modular / Workstation | Compact Handheld |
| Certifications | RoHS, CE, ISO | ISO9001, CE, RoHS | RoHS, CE |
| Warranty | 12 months | 12 months | 12 months |
Applications & Use Cases
Casting & Forging Defect Measurement
GV F
GV JX — Recommended
Accurate dimensional sizing of internal casting defects, shrinkage voids, and forging cracks in manufacturing quality control operations without component disassembly.
Pipeline & Pressure Vessel Weld Inspection
GV F
GV JX — Recommended
Weld root inspection and defect sizing inside pipelines and pressure vessels using extended reach probes up to 10 metres — enabling compliance reporting without plant shutdown.
Petrochemical Plant Integrity Inspection
GV JX — Recommended
Corrosion measurement and structural integrity inspection inside petrochemical vessels, heat exchangers, and process piping with high-intensity optic fibre illumination at 1,000,000 Lx.
Aerospace Component Dimensional Verification
GV F
GV JX
Crack sizing and dimensional verification on aerospace components with >95% measurement accuracy — supporting airworthiness determination and regulatory documentation requirements.
Power Generation Turbine Inspection
GV JX — Recommended
Turbine blade and heat exchanger tube inspection and measurement in power generation facilities, with MDI report generation for maintenance and compliance record-keeping.
Field & Portable Inspection Operations
GV TS — Recommended
GV F
Compact handheld form factor of the GV TS provides a cost-effective, portable solution for field inspection teams requiring 3D measurement capability in remote or confined-space environments.
Why Choose Global Hi-Technologies?
System Design & Integration
Measurement configurations tailored to bore size, inspection depth, and dimensional accuracy requirements — ensuring the right endoscope system is matched to each industrial application and measurement task.
Advanced Measurement Technology
Industry-leading capabilities including 3D cloud modelling, XYZ coordinate measurement, arbitrary section analysis, real-time depth tracking, and MDI report generation across the product range.
Reliable Field Deployment
Professional commissioning and operator training for NDT and quality assurance teams, ensuring technicians achieve full measurement capability and reporting compliance from day one of deployment.
Long-Term Aftersales Support
Comprehensive aftersales service, technical support, and spare probe availability. All systems include a 12-month standard warranty with extended options available — backed by Global Hi-Technologies' dedicated support team.
Proven Industrial Capability
Designed for demanding industrial inspection environments with certifications including RoHS, CE, ISO9001, and ISO14001 standards. Each model is engineered for accurate, repeatable dimensional measurement across aerospace, manufacturing, energy, and petrochemical sectors.
Frequently Asked Questions
What industries are measuring endoscopes used in?
Measuring endoscopes are used across aerospace, manufacturing, energy, and petrochemical industries for dimensional inspection, defect analysis, and quality control inside confined spaces. Typical applications include casting and forging defect sizing, pipeline and weld inspection, turbine blade measurement, and petrochemical plant integrity assessment.
What is the measurement accuracy of these systems?
The GV F and GV JX both achieve measurement accuracy exceeding 95% across point-to-point, point-to-line, polyline, and 3D cloud measurement modes. The GV TS provides standard 3D measurement capability and is positioned as a cost-effective entry solution for teams requiring portable dimensional inspection.
Which model is best for high-precision dimensional analysis?
The GV JX is the recommended choice for high-precision work, offering motor-driven articulation, full 3D cloud image modelling, XYZ coordinate measurement, arbitrary section analysis, real-time depth tracking, and MDI report generation. It is ISO9001 and ISO14001 certified with 10+ patented technologies and inspection reach up to 10 metres.
Can inspection reports be generated in the field?
Yes. The GV JX generates MDI inspection reports exportable via USB, Bluetooth, or internal storage. The GV F supports Bluetooth report output directly to mobile devices, enabling field teams to document and share dimensional findings immediately without returning to a workstation or laboratory.
What probe diameters and working lengths are available?
Probe diameters range from Φ1.0mm to 8.0mm across the GV F and GV JX, and Φ1.8mm to 8.0mm on the GV TS. Working lengths range from 2–3m (customisable) on the GV F up to 10 metres on the GV JX. Global Hi-Technologies can configure specific combinations to match your bore size and inspection depth requirements.
