Panic Bar Locks

Emergency Exit Hardware Series

Product Overview

The Go-Access Panic Bar Lock series provides fast, safe, and reliable emergency exit access for fire-rated and exit doors across commercial, industrial, and public buildings. Engineered to meet emergency egress requirements while maintaining secure door control under normal operating conditions, the series covers a comprehensive range of configurations — from single-leaf touch-type bars to vertical rod systems for double-leaf doors, with standard, alarm-equipped, and hex key dogging variants. Built from durable painted iron and SUS 304 stainless steel with corrosion-resistant finishes, every model in the Go-Access Panic Bar series is designed for long service life in high-footfall environments — ensuring occupant safety compliance and dependable emergency egress performance at all times.

Model Configurations

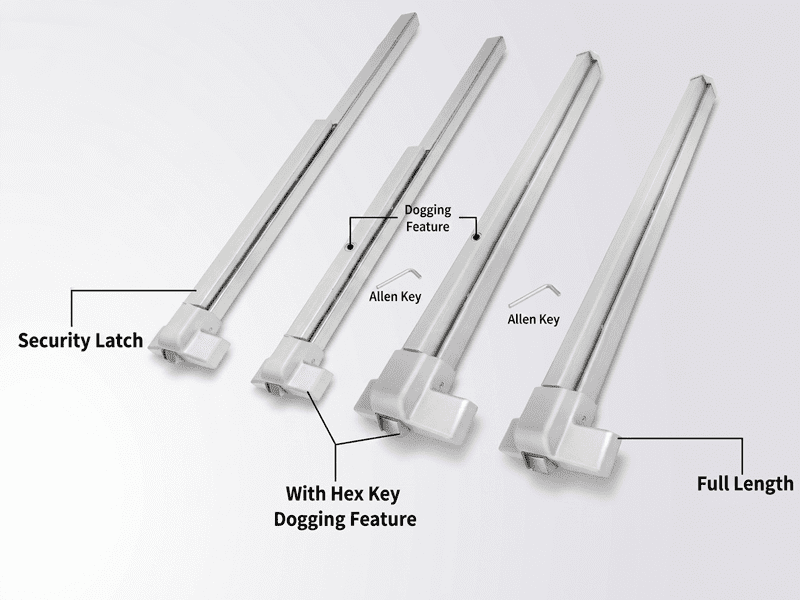

Panic Bar (Touch Type) — Standard & Hex Key Dogging

Surface-Mounted Touch Type Panic Bar | Single & Double Leaf | 800–1045mm

Touch Type · Single/Double Leaf

Fast, smooth emergency exit operation for both single-leaf and double-leaf fire and exit doors
Available in Full Length and Hex Key Dogging variants
Integrated security latch with smooth mechanical action
Instant door release during emergencies
Controlled access management during normal operating hours
Available lengths: 800 / 900 / 1000 / 1045 mm

Non-Handed · SUS 304 SS · 12-Month Warranty

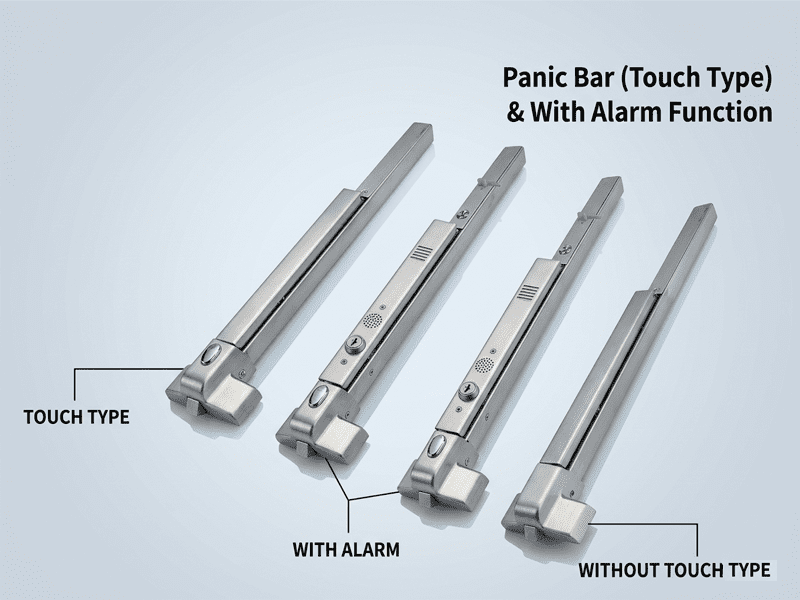

Panic Bar (Touch Type) with Alarm Function

Touch Type Panic Bar with Integrated Audible Alarm | 650–1045mm

Alarm Equipped · Deterrent

Combines standard push-type emergency egress with integrated audible alert system
Alarm activates immediately upon bar operation
Deters unauthorized use during non-emergency periods
Available in touch-type, with-alarm, and non-touch-type configurations
Unobstructed egress maintained at all times
Available lengths: 650 / 800 / 1000 / 1045 mm

Alarm Function · Painted Iron / SUS 304 SS · 12-Month Warranty

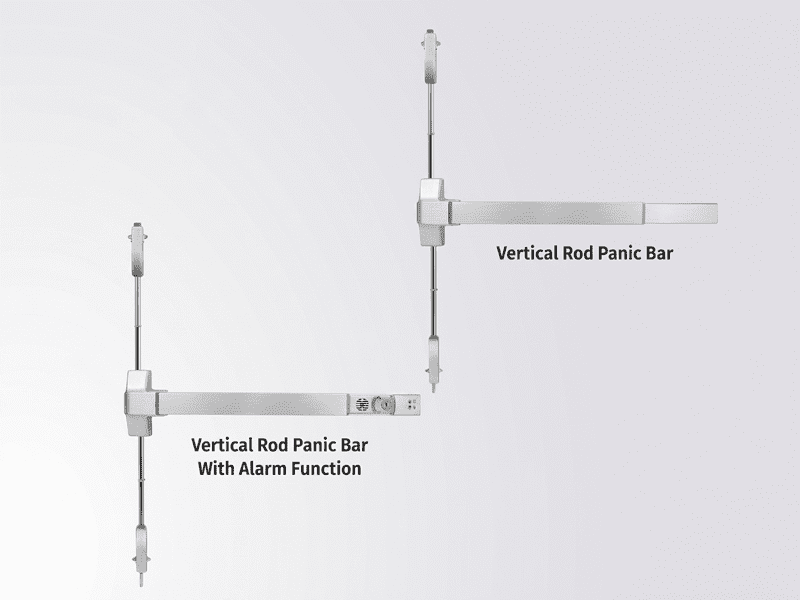

Vertical Rod Panic Bar — Standard & With Alarm

Vertical Rod Emergency Exit Device | Double-Leaf Fire & Exit Doors | 2100–2400mm

Vertical Rod · Double Leaf

Reliable emergency exit control for double-leaf fire and exit doors
Simple push action simultaneously retracts top and bottom vertical rods
Smooth, dependable mechanical performance
Optional alarm function provides audible notification on activation
Vertical rod length: 1150 mm
Door height compatibility: 2100–2400 mm

Dual Latching · Alarm Optional · 12-Month Warranty

Push Bar with Vertical Rod System — Double Leaf

Aluminium Alloy Vertical Rod Push Bar | Double Leaf Doors | Dual Latching

Aluminium · Double Leaf · Dual Point

Dual top and bottom latching system for secure locking and instant release
Constructed from durable aluminium alloy
Designed for fire and emergency exit doors
Smooth operation and fast evacuation in high-traffic environments
Tube lengths: 900 mm / 1000 mm
Max door width: 1020 / 1025 mm | Max door height: 2200 / 2400 mm

Grey / Red & Black · Customized Finishes Available

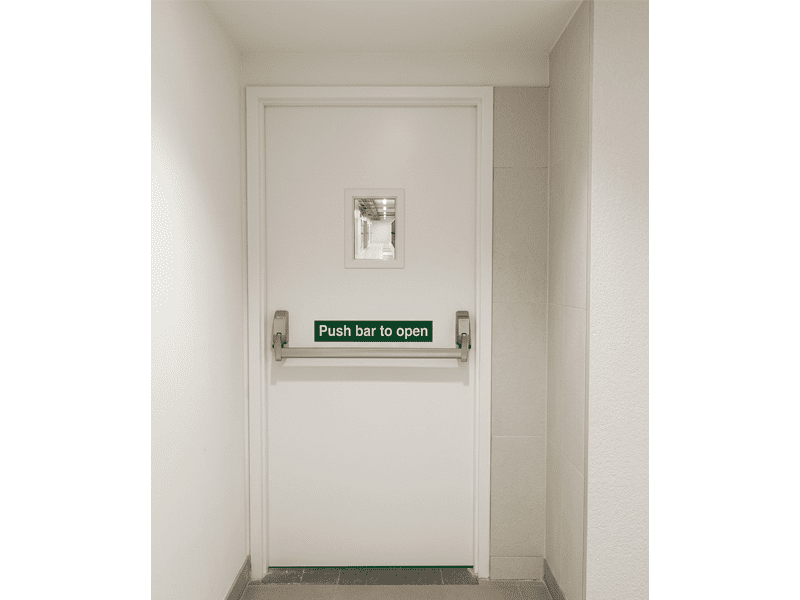

Push Bar — Single Point Latching (Single Leaf)

Aluminium Alloy Surface-Mounted Push Bar | Single Leaf | Single Point Latch

Single Leaf · Surface Mounted

Straightforward, reliable emergency exit control for single-leaf doors
Surface-mounted with manual push action
Available in 900 mm and 1000 mm tube lengths
Accommodates door widths up to 1025 mm
Available in grey and red-black colour finishes

Aluminium Alloy · Grey / Red & Black · Customized

Full range coverage: The Go-Access Panic Bar series covers all door configurations — from single-leaf touch-type bars to vertical rod systems for double-leaf doors, with standard, alarm-equipped, and hex key dogging variants. All models use non-handed universal design for both left-hand and right-hand door installation.

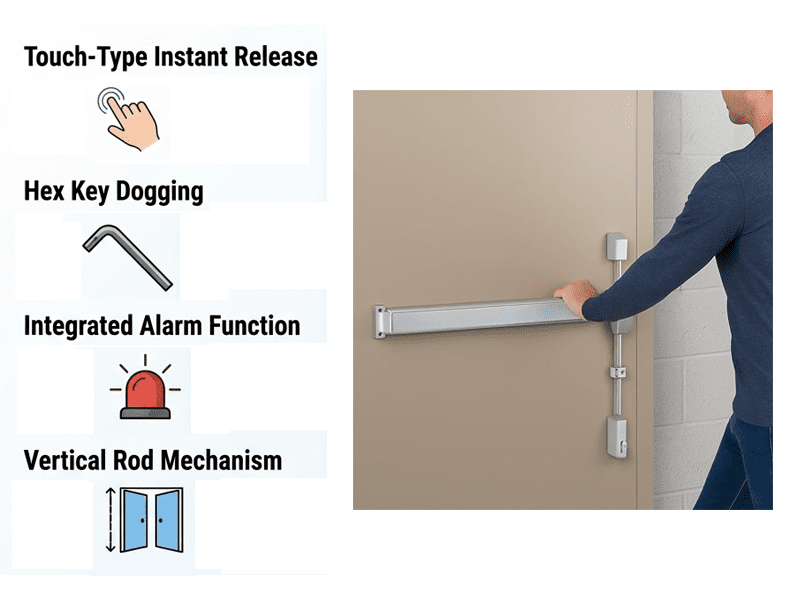

Key Features & Benefits

Touch-Type Instant Release Operation

A simple touch or push on the bar instantly releases the door latch, enabling fast and effortless evacuation during emergencies. The smooth, consistent mechanical action operates reliably under high-frequency use without degradation in performance.

Hex Key Dogging Feature for High-Traffic Operations

Available on Touch Type models, the hex key dogging option allows the push bar to be temporarily held in the open position using an Allen key — ideal for high-traffic periods during normal operating hours. The full panic exit function remains automatically active when dogging is disengaged, ensuring emergency egress is never compromised.

Integrated Alarm Function

Alarm-equipped variants include an audible alert system that activates immediately when the panic bar is operated — providing deterrence against casual or unauthorized use during normal hours while alerting security personnel to emergency activations. The alarm function is designed to operate without compromising the primary panic exit function at any time.

Vertical Rod Mechanism for Double-Leaf Doors

The vertical rod system simultaneously retracts locking points at both the top and bottom of double-leaf door frames, providing enhanced door stability, reliable locking performance, and consistent operation across the full door height. Suitable for fire-rated exit doors up to 2400mm in height.

Durable Industrial-Grade Construction

Manufactured from painted iron and SUS 304 stainless steel with corrosion-resistant surface finishes, all models are designed for long operational life in commercial, industrial, and public building environments subject to high footfall and frequent use.

Non-Handed Universal Design

All Touch Type and Vertical Rod models are non-handed, making them suitable for installation on both left-hand and right-hand doors without requiring model-specific ordering. This simplifies procurement and reduces installation planning complexity.

Fire Door & Emergency Exit Compliance

The full panic exit function across all models is designed to meet emergency exit safety requirements for fire doors, stairwell doors, escape routes, and commercial and public building exit compliance — supporting safety certification requirements for the environments in which they are installed.

Technical Specifications

Parameter

Installation

Material

Door Type

Available Lengths

Max Door Width

Max Door Height

Handing

Operation

Latching

Vertical Rod

Hex Key Dogging

Alarm Function

Finish / Color

Application

Compliance

Touch Type
Standard / Dogging

Touch Type
With Alarm

Vertical Rod
Standard / Alarm

Push Bar + V.Rod
Double Leaf

Push Bar
Single Point Latch

Surface Mounted

Painted Iron /
SUS 304 SS

Aluminium Alloy

Single & Double Leaf

Double Leaf

Single Leaf

800 / 900 /
1000 / 1045 mm

650 / 800 /
1000 / 1045 mm

900 / 1000 mm

—

1020 / 1025 mm

—

2100 – 2400 mm

2200 / 2400 mm

—

Non-Handed

—

Touch Type

Push Bar,
Touch Type

Manual Push

Single Point

Dual Point
(Top & Bottom)

Single Point

Yes — 1150 mm

Yes

Optional

Yes

Optional

Silver
(Custom available)

Grey / Red & Black
(Customized)

Fire doors, exits,
stairwells, commercial

Fire-rated &
emergency exit doors

Fire doors, exits,
escape routes

Fire doors,
emergency exits

Emergency Exit

Universal design: All Touch Type and Vertical Rod models are non-handed — suitable for both left-hand and right-hand door installations without model-specific ordering. Custom finishes and lengths are available on request for architectural specification projects.

Ideal Applications

Commercial Buildings & Office Complexes

Touch Type — Hex Key Dogging

Install touch-type panic bars on fire exit doors, stairwell doors, and emergency escape routes to meet building safety compliance requirements. The Hex Key Dogging variant is ideal for high-traffic ground floor exits that need to remain open during business hours.

Industrial Facilities & Warehouses

SUS 304 SS Painted Iron

The durable SUS 304 stainless steel and painted iron construction withstands the demanding conditions of industrial environments — including loading dock exits, factory floor emergency escapes, and warehouse fire door installations.

Public Buildings & Institutions

Non-Handed — Multiple Lengths

Schools, hospitals, government buildings, shopping centres, and entertainment venues require panic hardware that delivers dependable emergency egress for large numbers of occupants. The non-handed design and multiple length options accommodate diverse door specifications common in public building projects.

High-Security & Controlled Access Areas

Alarm Equipped — Recommended

Alarm-equipped panic bar variants provide audible deterrence against unauthorized exit use in secure areas — including data centres, restricted storage zones, and controlled access facilities where casual exit door use needs to be monitored and discouraged.

Fire-Rated Exit Doors & Escape Routes

All Models

All models are specifically designed for fire-rated exit door applications, supporting safety compliance for fire escape routes, stairwell exits, and emergency egress doors in buildings subject to fire safety regulations and inspection requirements.

Double-Leaf Entry & Exit Points

Vertical Rod — Dual Latching

The Vertical Rod Panic Bar and Push Bar with Vertical Rod System provide reliable dual-point latching for double-leaf doors at main entrances, loading bays, and large exit openings in commercial and industrial facilities — accommodating door heights from 2100mm to 2400mm.

Why Choose Global Hi-technologies?

System Design & Integration

Emergency exit hardware solutions engineered for your building's safety requirements. Our technical team provides professional site assessment, specification guidance, and system integration support for projects of all scales.

Comprehensive Range

Touch type, vertical rod, alarm-equipped, and dogging variants covering all door configurations — from single-leaf fire exits to double-leaf industrial openings. One supplier for your complete emergency exit hardware specification.

Reliable Deployment

Professional installation, commissioning, and operator training ensure every panic bar is installed correctly and performs reliably from day one — meeting emergency exit compliance requirements across all door types.

Long-Term Support

Aftersales service with ongoing maintenance and technical assistance. Our support team provides reliable after-deployment care to ensure continued safety performance across the full product lifecycle.

Warranty · 12 Months Standard

All panic bar models carry a 12-month standard warranty as standard. Extended warranty packages are available on request for long-term facility deployments and large-scale building projects.

Frequently Asked Questions

What is the difference between touch-type and standard panic bar operation?

Touch-type panic bars are activated by any contact with the bar surface — requiring only a light touch rather than a deliberate push. This enables faster and easier door release during emergencies, particularly in low-visibility or high-stress evacuation scenarios, and is the preferred specification for fire exit compliance in high-occupancy buildings.

Does the hex key dogging feature disable the panic exit function?

No. When hex key dogging is engaged to hold the bar in the open position, the panic exit function remains fully active. If the dogging is disengaged — whether deliberately or due to an emergency — the bar returns to normal panic operation immediately. The panic exit function is never compromised by the dogging feature.

Can the alarm version be used on all door types?

The alarm-equipped variants are available for both touch-type single-leaf and vertical rod double-leaf configurations. The alarm activates upon bar operation regardless of door type, and the alarm function is designed not to interfere with the primary emergency egress performance of the device.

What door heights and widths do the vertical rod systems accommodate?

The Vertical Rod Panic Bar accommodates doors from 2100mm to 2400mm in height. The Push Bar with Vertical Rod System supports maximum door widths of 1020mm to 1025mm and heights of 2200mm to 2400mm. Bar lengths from 650mm to 1045mm are available to accommodate varying door width requirements.

Are custom finishes available?

Yes. All models are available in Silver as standard, with custom finishes available on request. The aluminium alloy push bar models are available in Grey or Red & Black as standard options, with customized finishes available for architectural specification projects.

Do these products meet fire door compliance requirements?

The full panic exit function across all models is designed to meet emergency exit safety requirements for fire-rated doors and escape routes. For specific fire door certification and compliance requirements applicable to your project or jurisdiction, please contact our technical team for detailed product certification documentation.
