UVSS
Under Vehicle Surveillance Scanning System
Product Overview

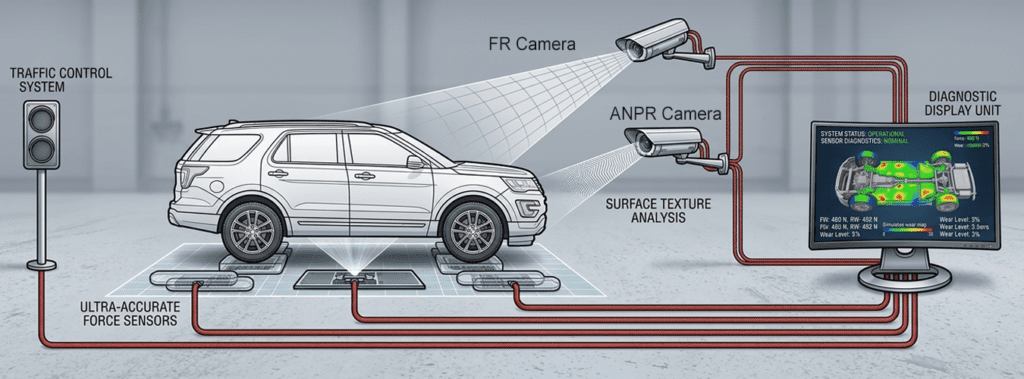

The Go-safe Under Vehicle Surveillance Scanning (UVSS) system is an Integrated Security Checkpoint Solution combining Automatic Number Plate Recognition (ANPR), Driver Face Recognition and Boom Barrier control. The system is designed for corporate offices, government facilities, military camps, hotels and transportation hubs — supporting security screening for cars, SUVs, buses, vans, trailers and all vehicle types.
The core UVSS unit uses a world-leading intelligent 170° camera to scan and inspect vehicle undercarriages in real time, detecting explosive devices, suspicious objects, contraband such as drugs and weapons. Once UVSS grants clearance, the vehicle passes through ANPR and Driver Face Recognition checkpoints, with final confirmation via Boom Barrier — providing four-point verified authorisation at every entry.
Available in two configurations: Embedded & Surface Mount UVSS (linear scan, high-load deployment) and Surface Mount / Flush Type UVSS (ultra-slim modular design for low-construction-cost installations).
Key Features & Benefits
170° Wide-Angle Linear & Area Scan Camera
Industry-leading 4096P sensor with image resolution ≥ 10,000 × 4,096 captures every detail of the vehicle undercarriage in a single pass. Linear scan delivers distortion-free images; area scan variant provides intelligent AI-based comparison analysis.
Capture Accuracy > 99.9% at Up to 60 km/h
High-precision imaging at vehicle speeds up to 60 km/h ensures no vehicle passes unscanned, even in high-throughput environments. Imaging time is under 1 second per vehicle.
AI-Powered Foreign Object Detection (FOD)
Deep Neural Networks (DNN) technology automatically identifies the vehicle model and uses a proprietary FOD algorithm to highlight any change or difference between a newly scanned vehicle undercarriage and the stored reference image — flagging anomalies instantly.
High Load Bearing Capacity — 60 Tonnes
The embedded variant supports a load-bearing capacity of 60 tonnes — suitable for heavy goods vehicles, buses, and military transport. The flush-type surface mount variant offers super slim construction under 10 cm height with IP68 environmental protection.
Built-in ISP Speed Detector & Gigabit Ethernet
The surface mount variant includes an integrated speed detector that captures vehicles moving up to 60 km/h, triggering image capture automatically. High-speed Gigabit Ethernet networking with IPv4 ensures rapid image transfer to the central security management server.
Technical Specifications
Performance
| Parameter | Specification |
|---|---|
| Capture Accuracy | > 99.9% |
| Speed Limit | 0 – 60 km/h |
| Intelligent Analysis | Auto |
| Height of Vehicle Chassis | 50 – 3000 mm |
| Width of Vehicle Chassis | ≤ 4500 mm |
| Length of Vehicle Chassis | No limit |
| Imaging Time | < 1 second |
| System Extension | Boom Barrier, ANPR & Face Recognition |
| Foreign Object Detection | Optional |
| Load Bearing Capacity | 60 Tonnes |
Camera
| Parameter | Specification |
|---|---|
| Sensor Resolution | 4096P |
| Image Resolution | ≥ 10,000 × 4,096 |
| View Angle of Lens | > 170° |
| White Balance | Auto |
| Exposure | Auto |
| Network Speed | Gigabit Ethernet |
| Protocol | IPv4 |
| Power Supply | DC 24V / 150W |

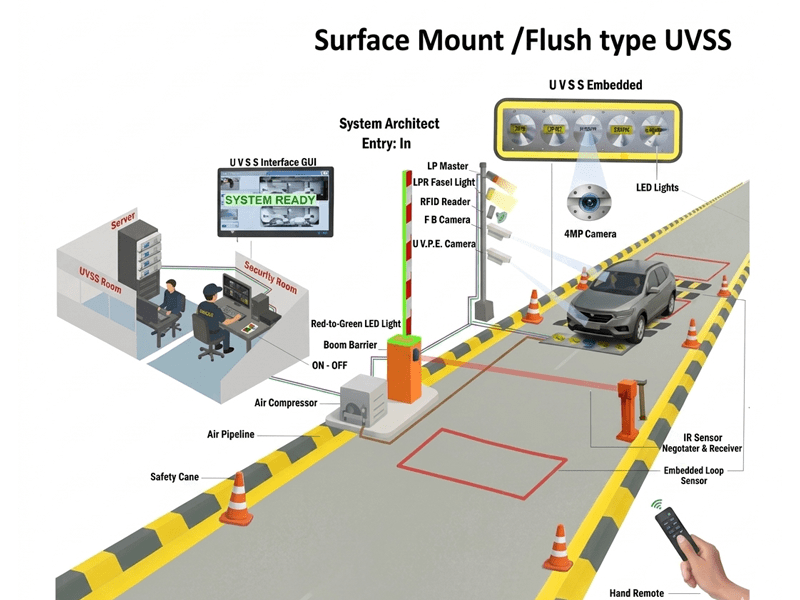

Surface Mount / Flush Type — Construction & Environment
| Parameter | Specification |
|---|---|
| Dimensions | 1236 mm × 320 mm × 105 mm |
| Weight | 45 kg |
| Operating Temperature | -40°C to +70°C |
| Protection Level | IP68 |
Ideal Applications
Corporate Office & Commercial Campus Security
Deploy UVSS at corporate headquarters, technology parks, and commercial campuses to enforce vehicle security at entry points — preventing smuggling of contraband, explosive devices, or unauthorised modifications to visiting vehicles.
Government & Military Installations
Government buildings, military camps, and defence facilities require the highest standard of vehicle screening. The Go-safe UVSS delivers sub-1-second imaging with > 99.9% accuracy, fully integrated with access control infrastructure.
Hotel, Convention & Hospitality Security
High-footfall hotels, convention centres, and resort properties can maintain guest safety and regulatory compliance by screening all entering vehicles at the car park entry point without disrupting guest experience.
Transportation Hubs — Ports, Airports & Border Control
Ports, airports, and land border crossings process large volumes of vehicle traffic daily. The UVSS system's high-speed imaging, AI-based FOD, and integration with ANPR and Face Recognition provide a scalable, intelligent screening layer.
Critical Infrastructure Protection
Power stations, water treatment facilities, data centres, and other critical infrastructure assets benefit from UVSS deployment as part of an integrated perimeter security strategy — detecting threats before vehicles enter the secure zone.
Why Choose Global Hi- Technologies
End-to-End Integrated Checkpoint Solution
The Go-safe UVSS is not a standalone scanner — it is the foundation of a complete four-point vehicle access control system incorporating ANPR, Face Recognition, and Boom Barrier in a single coordinated deployment.
World-Leading AI Technology
DNN-powered vehicle identification and proprietary FOD algorithm deliver automated threat detection with minimal operator dependency, reducing human error in high-pressure security environments.
Two Variants for Every Deployment Context
Whether your site requires the high-load embedded system or a minimal-disruption flush-mount installation, Go-safe provides both options — customised to your site's construction and operational requirements.
Warranty — 12 Months
Global Hi-Technologies provides professional commissioning, operator training, ongoing maintenance, and full customisation of UVSS configurations. 12-month standard warranty included; extended warranty available on request.
Frequently Asked Questions
What types of vehicles does the UVSS support?
The Go-safe UVSS accommodates all vehicle types — cars, SUVs, vans, buses, trailers, and heavy goods vehicles. The system supports chassis widths up to 4,500 mm, heights from 50 to 3,000 mm, and unlimited vehicle length, with a 60-tonne load bearing capacity on the embedded variant.
How does the Foreign Object Detection (FOD) work?
The AI-based FOD algorithm compares the undercarriage of a newly scanned vehicle against a reference image database. Any change, addition, or anomaly — including devices, packages, or modifications — is automatically highlighted for operator review within 3 seconds or less.
What is the difference between the Embedded and Surface Mount variants?
The Embedded & Surface Mount variant uses linear scan camera technology and supports a 60-tonne load — suited for permanent installations with ground-level embedding. The Surface Mount / Flush Type variant uses area scan camera technology with a super slim profile under 10 cm, offering easier installation, modular design, and IP68 protection with operating range -40°C to +70°C.
Can the UVSS be integrated with existing access control systems?
Yes. The Go-safe UVSS is designed for seamless integration with Boom Barrier, ANPR, and Face Recognition systems. It can also be connected to existing security management platforms. Contact the Go-safe team for compatibility assessment and integration planning.
Is the system customisable for specific site requirements?
Yes. Global Hi-Technologies customises UVSS deployments for corporate, government, and infrastructure clients — including camera configuration, software parameters, integration with third-party access control systems, and site-specific installation engineering.
Request a Consultation
Looking to deploy an integrated vehicle security screening solution for your facility, campus, or critical infrastructure site? Contact Go-safe for professional site assessment, system design, volume pricing, and deployment consultation.
