Automotive Videoscopes
Model: GV- QT360 | GV S
Product Overview
Global Hi-Technologies Automotive Videoscope range is purpose-built for vehicle diagnostic inspection, fleet maintenance and automotive aftermarket workshops.
The GV- QT360 and GV S deliver 360° all-way articulation with HD imaging in compact and portable form factors — allowing technicians to quickly and accurately inspect engine internals, combustion chambers, catalytic converters, and hidden vehicle cavities.
This enables faster diagnostics and more reliable maintenance documentation across workshops and fleet operations.
Model Configurations

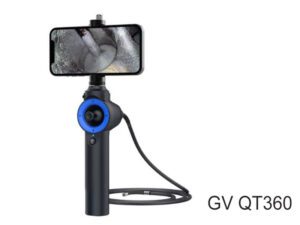

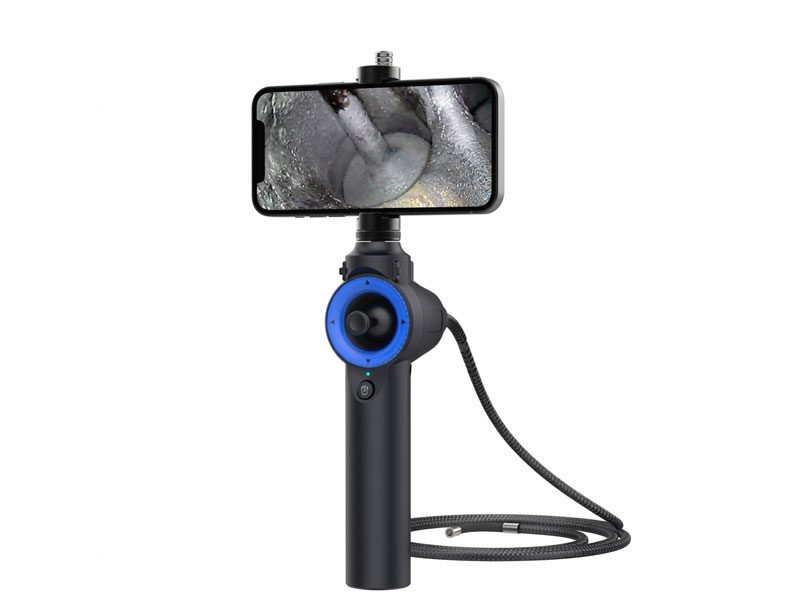

GV- QT360
All-Way Articulation Smartphone Borescope
- 360° all-way articulation with 210° bending angle
- Direct connection to Android and Apple smartphones
- Real-time inspection viewing on your own device
- Automatic report generation — reduces documentation time
- Intelligent high-temperature alarm for safe hot-component inspection
- Depth of field: 20mm to infinity

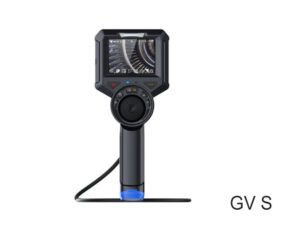

GV S
Mega Pixels 360° Joystick Tool Borescope
- 1MP HD imaging sensor with 360° joystick articulation
- 220° bending angle · 3.5” IPS HD dedicated display
- Tungsten alloy inspection tube for enhanced durability
- Ceramic LED lighting with adjustable brightness
- One-click photo and video capture
- Wireless image transmission via Wi-Fi
Key Features & Benefits
360° All-Way Articulation
Both models deliver full 360° all-way articulation — the GV- QT360 reaching a 210° bending angle and the GV S achieving 220°. This enables complete inspection of engine combustion chambers, curved exhaust passages, and hard-to-reach vehicle cavities without repositioning the probe or the vehicle.
Smartphone Connectivity & Auto Reporting — GV- QT360
The GV- QT360 connects directly to Android and Apple smartphones via data cable — eliminating the need for a separate display unit. Automatic report generation produces formatted inspection records directly from the device, significantly reducing manual documentation time for high-volume workshop operations.
HD Imaging & Dedicated Display — GV S
The GV S’s 1MP HD sensor delivers crisp 1280×720 imaging on a self-contained 3.5” IPS HD display — no smartphone required. Ceramic LED lighting with adjustable brightness ensures accurate image quality across varying cavity depths, while one-click photo and video capture simplifies on-site documentation.
Intelligent High-Temperature Alarm — GV- QT360
The GV- QT360 monitors probe tip temperature continuously and triggers an intelligent alarm before critical thresholds are exceeded — protecting the probe during inspection of exhaust systems, catalytic converters, and turbochargers where residual heat is a factor during servicing.

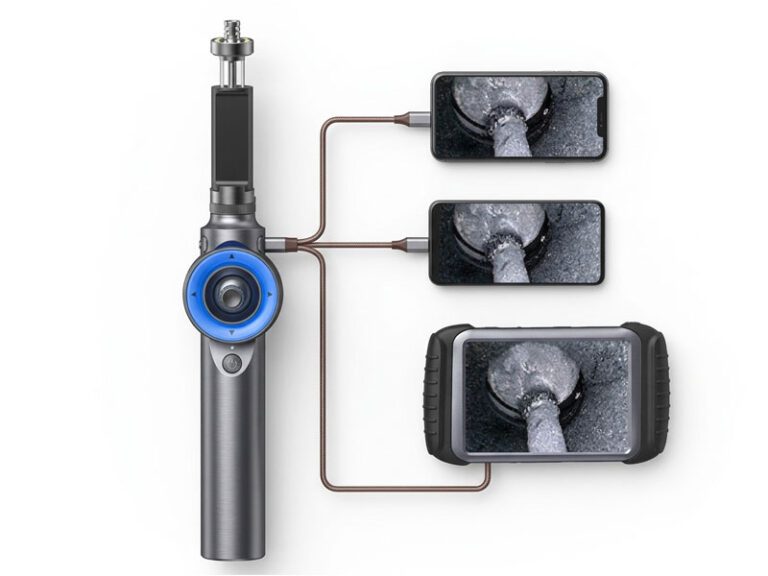

Compatible with different smart devices
Probe & Tube Specifications
Both models use a Φ6.0mm probe diameter — ideal for standard automotive bore access. The GV- QT360 comes with a 1.0m tube, while the GV S is available in 1m and 1.5m configurations. The GV S’s tungsten alloy tube provides superior durability for intensive daily workshop use.
Connectivity & Output
The GV- QT360 connects via USB to Android and Apple smartphones for real-time viewing and automatic report generation. The GV S features built-in Wi-Fi and wireless image transmission, allowing inspection images and videos to be shared with other devices or technicians on the same network.
Certifications & Warranty
Both models carry RoHS and CE certifications, meeting international safety and performance standards. Each model includes a 12-month standard warranty covering manufacturing defects under normal operating conditions, with extended warranty packages available on request.
Technical Specifications
| Specification | GV- QT360 | GV S |
|---|---|---|
| Probe Diameter | Φ6.0mm | Φ6.0mm |
| Image Resolution | 960×720 / 1280×720 | 1280×720 |
| Articulation | 360° All-Way | 360° Joystick |
| Max Bending Angle | 210° | 220° |
| Tube Length | 1.0m | 1m / 1.5m |
| Tube Material | Standard | Tungsten Alloy |
| Display | Smartphone Screen | 3.5” IPS HD |
| Connectivity | Android / Apple (USB) | Wi-Fi / Wireless |
| Report Generation | Automatic | Manual (Photo / Video) |
| Temperature Alarm | Intelligent Alarm | — |
| Depth of Field | 20mm – ∞ | Standard |
| Certifications | RoHS, CE | RoHS, CE |
| Warranty | 12 months | 12 months |
Ideal Applications
Engine Combustion Chamber & Cylinder Bore
GV- QT360
GV S — Recommended
Internal inspection of combustion chambers and cylinder bores — the GV S's 1MP HD sensor, ceramic LED brightness control, and 220° articulation delivering the image quality and precision required for accurate condition assessment.
Catalytic Converter & Exhaust System Inspection
GV- QT360 — Recommended
The intelligent high-temperature alarm protects the probe during inspection of exhaust systems and catalytic converters where residual heat is a factor — ensuring safe, reliable inspection without equipment damage.
HVAC & Car Evaporation Box Inspection
GV- QT360
GV S
Both models access HVAC evaporation boxes and climate system cavities for inspection of blockages, corrosion, and contamination — without dismantling dashboard components.
Automotive Body Cavity Corrosion Inspection
GV S — Recommended
The 1.5m tube option on the GV S provides extended reach for door pillar, sill, and underbody cavity corrosion inspection — essential for pre-purchase vehicle assessments and fleet condition monitoring.
Fleet Maintenance & Inspection Documentation
GV- QT360 — Recommended
Automatic report generation makes the GV- QT360 the definitive fleet maintenance tool — producing formatted inspection records directly on the technician's smartphone, reducing documentation time across high-volume vehicle inspection programmes.
Why Choose Global Hi-Technologies?
System Design & Integration
Inspection solutions tailored for automotive workshops and fleet maintenance environments — including model selection, configuration, and deployment support matched to your specific inspection workload and vehicle types.
Advanced Technology Support
Smartphone connectivity and automatic report generation reduce manual documentation time — keeping workshop operations efficient and inspection records accurate across high-volume vehicle servicing environments.
Reliable Deployment
Lightweight and portable inspection instruments ready for immediate workshop deployment — no specialist installation required. Both models are designed for daily use straight out of the box.
Long-Term Support
Comprehensive aftersales service, technical assistance, and spare parts availability throughout the product lifecycle — ensuring uninterrupted workshop inspection capability.
Warranty
12-month standard warranty on all models covering manufacturing defects and component failures under normal operating conditions. Extended warranty packages are available on request.
Frequently Asked Questions
What makes the GV- QT360 suitable for workshops without a display unit?
The GV- QT360 connects directly to Android and Apple smartphones via a data cable, allowing technicians to use their own mobile devices as the inspection display. This makes the system highly portable and cost-effective. The automatic report generation feature also reduces manual documentation time significantly.
Which model is better for engine combustion chamber inspection?
Both models perform well in combustion chamber inspection. The GV S provides improved image stability and brightness control thanks to its 1MP HD sensor, ceramic LED lighting, and dedicated 3.5” IPS HD display. For technicians needing automatic report generation, the GV- QT360 is the better choice.
Can the GV- QT360 work with both Android and Apple devices?
Yes. The GV- QT360 is compatible with both Android and Apple smartphones via a direct data cable connection. Please verify USB connector compatibility with your specific device model before purchase.
Does the GV S support wireless image sharing?
Yes. The GV S features built-in Wi-Fi and wireless image transmission, allowing inspection images and videos to be shared with other devices or technicians on the same network.
How does the high-temperature alarm help during inspections?
The GV- QT360 includes an intelligent high-temperature alarm that monitors probe tip temperature continuously. This helps prevent probe damage when inspecting hot components such as exhaust systems, catalytic converters, and turbochargers where residual heat is present during servicing.
What types of vehicle components can be inspected?
With a 6mm probe diameter and 360° articulation, these videoscopes can access many automotive cavities including engine combustion chambers, cylinder bores, exhaust and catalytic converters, HVAC evaporation boxes, door and body panel cavities, and fuel system components.
Are these videoscopes suitable for heavy daily workshop use?
Yes. Both models are designed for regular automotive workshop use. The GV S offers enhanced durability with its tungsten alloy tube, while the GV- QT360 provides a lightweight solution well suited to mobile technicians and multi-vehicle fleet inspection programmes.
Request a Consultation
Looking for a reliable automotive videoscope solution for your workshop or fleet operation? Contact Global Hi-Technologies for professional consultation, system configuration, and competitive pricing.
