Customized Borescopes
Model: GV TU | GV QT 360
Product Overview
Global Hi-Technologies Customized Borescope range provides configurable inspection solutions for applications where standard off-the-shelf inspection instruments cannot meet specific requirements.
These borescopes are designed for environments requiring specialised access, advanced illumination technologies, or system integration capabilities. The range includes the GV TU — a UV fluorescence videoscope for surface crack and defect detection — and the GV QT 360 — a fully configurable borescope platform for OEM integration and bespoke inspection system deployment.
These systems allow organisations to deploy tailored inspection tools for unique industrial and engineering environments.
Model Configurations

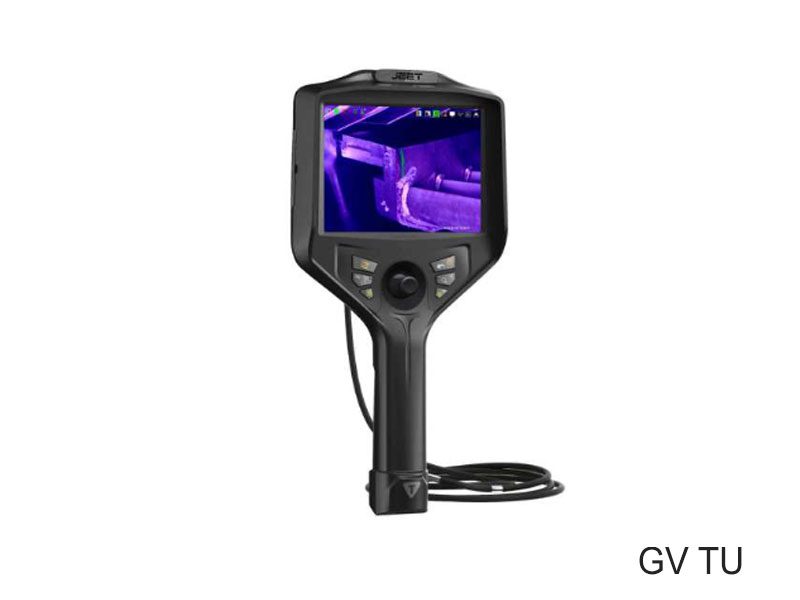

GV TU
Dual UV & White Light Industrial Endoscope
- Integrated UV and white dual-light sources with one-key toggle
- 360° joystick articulation with ≥100° bending performance at 10m
- High-temperature protection alarm — 65°C warning / 80°C auto shutdown
- HDMI output for external display and data capture
- Modular host and handle design for ergonomic field operation
- Configurable light source specification for FPI and UV inspection workflows

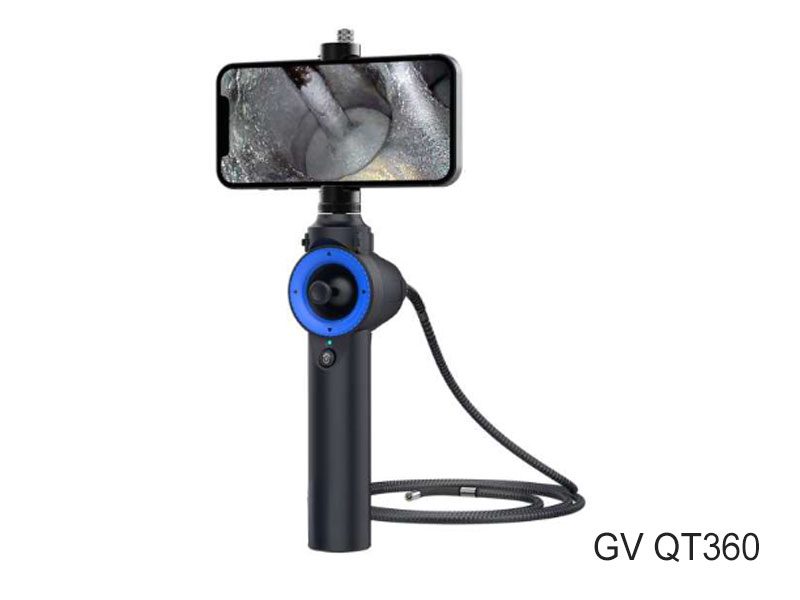

GV QT 360
360° Fully Configurable Inspection Borescope
- 360° all-way articulation with 210° bending angle
- Custom probe diameter, tube length, interfaces, and feature specifications
- Compatible with Android and Apple smartphones
- Intelligent temperature alarm for safe operation in thermal environments
- Automatic inspection report generation for documentation workflows
- Ideal for OEM integration and bespoke inspection system deployment

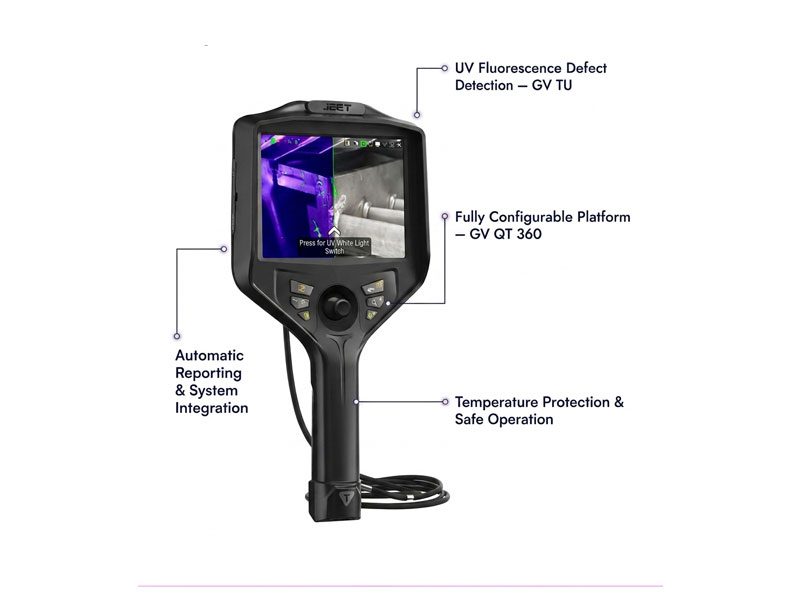

Key Features & Benefits
UV Fluorescence Defect Detection — GV TU
The GV TU integrates UV and white light in a single probe — switching instantly with one key press. UV fluorescence mode illuminates fluorescent penetrant inspection (FPI) dye, revealing surface cracks, porosity, and defects in castings, welds, and precision components that are invisible under white light alone.
Fully Configurable Platform — GV QT 360
The GV QT 360 is a fully customisable inspection platform — probe diameter, tube length, interfaces, and feature specifications can all be configured to meet the exact requirements of the deployment environment. Designed for OEM integration and bespoke inspection system deployment where standard configurations are insufficient.
Temperature Protection & Safe Operation
The GV TU features a two-stage temperature protection system — a warning alarm at 65°C and automatic shutdown at 80°C — protecting the probe during inspection of components with residual thermal exposure. The GV QT 360 also includes an intelligent temperature alarm configurable to the operating environment.
Automatic Reporting & System Integration
The GV QT 360 generates automatic inspection reports via smartphone connectivity — integrating directly into quality assurance and OEM documentation workflows. The GV TU supports HDMI output for connection to data capture platforms, reporting software, and inspection management systems.
Light Source Technology
The GV TU integrates UV and white dual-light sources with one-key instant toggle — enabling fluorescent penetrant inspection and standard visual inspection in a single probe without reconfiguration. The GV QT 360 supports configurable light source specification to match the target inspection workflow.
Customisation Options
The GV TU supports light source specification customisation for UV intensity and wavelength requirements. The GV QT 360 is configurable across probe diameter, tube length, connectivity interfaces, and feature set — enabling complete system design for OEM and bespoke industrial inspection integration projects.
Certifications & Warranty
Both models carry RoHS and CE certifications, meeting international safety and performance standards. Each system includes a 12-month standard warranty covering manufacturing defects, with extended warranty packages available on request for long-term OEM and industrial deployment programmes.
Technical Specifications
| Specification | GV TU | GV QT 360 |
|---|---|---|
| Probe Diameter | 6mm (Customisable) | 6mm (Customisable) |
| Light Sources | Rear-mounted optic fiber cold UV+White source | LED |
| Image Resolution | HD | 960×720 / 1280×720 |
| Articulation | 360° | 360° |
| Max Bending Angle | Standard | 210° |
| Bending at 10m | ≥100° | — |
| Tube Length | Standard | 1.0m (Customisable) |
| Temperature Alarm | 65°C warn / 80°C shutdown | Intelligent Alarm |
| Output | HDMI | Smartphone (Android / Apple) |
| Report Generation | — | Automatic |
| Customisation Options | Light source specification | Tube, diameter, features |
| Certifications | RoHS, CE | RoHS, CE |
| Warranty | 12 months | 12 months |
Ideal Applications
Fluorescent Penetrant Inspection (FPI)
GV TU — Recommended
UV fluorescence mode illuminates FPI dye applied to casting surfaces, welds, and machined components — revealing surface cracks, porosity, and defects invisible under white light, without changing equipment or interrupting the inspection workflow.
Weld Integrity Inspection
GV TU — Recommended
UV fluorescence technology enables detection of surface-breaking weld defects, incomplete fusion, and HAZ cracking in confined or internal weld inspection scenarios — where standard white light inspection cannot achieve adequate defect contrast.
Aerospace & Precision Engineering QC
GV TU — Recommended
Surface crack detection in aerospace components, turbine blades, and precision-machined parts using UV fluorescence — meeting the non-destructive testing (NDT) inspection requirements of aerospace quality assurance standards.
OEM Integration & Custom Inspection Systems
GV QT 360 — Recommended
The fully configurable GV QT 360 is purpose-built for OEM integration into custom inspection, quality assurance, and manufacturing automation systems — with configurable probe diameter, tube length, connectivity, and feature specifications.
Bespoke Confined-Space Inspection
GV TU
GV QT 360 — Recommended
Applications with non-standard bore sizes, access geometries, or operational constraints that standard off-the-shelf inspection instruments cannot accommodate — requiring purpose-designed probe configurations and interface specifications.
Why Choose Global Hi-Technologies?
System Design & Integration
Fully tailored inspection configurations designed for specialist industrial and OEM applications — probe selection, UV/white light specification, interface design, and tube configuration matched precisely to the inspection task and operating environment.
Advanced Technology Support
Support for UV fluorescence systems, custom tube configurations, interface integration, and data capture platform connectivity — backed by deep technical expertise in non-standard and bespoke industrial inspection deployments.
Reliable Deployment
Professional installation, commissioning, and operator training for seamless implementation — ensuring both the GV TU and GV QT 360 are correctly configured and operational from day one of deployment.
Long-Term Support
Comprehensive aftersales service, technical support, and extended support options throughout the product lifecycle — with spare parts availability for sustained operation in continuous industrial inspection programmes.
Warranty
12-month standard warranty on all systems covering manufacturing defects. Extended warranty packages are available on request for long-term OEM integration and industrial deployment requirements.
Frequently Asked Questions
What is UV fluorescence inspection and why is it important?
UV fluorescence inspection uses ultraviolet light to illuminate fluorescent penetrant dye applied to component surfaces. The dye seeps into surface-breaking defects such as cracks and porosity, then glows brightly under UV light — revealing defects invisible to standard white light inspection. It is a widely-used non-destructive testing (NDT) method in aerospace, casting, and precision engineering quality assurance.
Can the GV TU switch between UV and white light during an inspection?
Yes. The GV TU features one-key instant toggle between UV fluorescence and white light — allowing the operator to switch modes in a single button press without interrupting the inspection or reconfiguring the probe. This enables both FPI defect detection and standard visual inspection in a single continuous pass.
What can be customised on the GV QT 360?
The GV QT 360 supports customisation of probe diameter, tube length, connectivity interfaces, and feature specifications — enabling full system design for OEM integration and bespoke inspection deployments. Contact our technical team to discuss your specific configuration requirements.
How does the temperature protection system work on the GV TU?
The GV TU uses a two-stage temperature protection system: a warning alarm triggers at 65°C to alert the operator, and automatic probe shutdown activates at 80°C to prevent equipment damage. This protects the probe during inspection of components with residual heat exposure such as castings, post-weld components, and industrial machinery.
Is the GV QT 360 suitable for integration into a production line QA system?
Yes. The GV QT 360 is specifically designed for OEM integration and bespoke inspection system deployment — with configurable interfaces and automatic report generation. Contact our technical team to discuss integration requirements for your production line or quality assurance system.
What output options are available for connecting to data capture systems?
The GV TU supports HDMI output for connection to external displays, data capture platforms, and inspection management systems. The GV QT 360 connects to Android and Apple smartphones with automatic report generation — and configurable interface options are available for OEM integration into custom data capture workflows.
Request a Consultation
Looking for a customized borescope solution for your facility? Contact Global Hi-Technologies for professional consultation, system configuration, and competitive pricing.
